Land Weapons

Mitsubishi

Type 1 Chi-He

Developed from the Type 97 Chi-Ha, the Type 1 Chi-He was an attempt to improve the former's main deficiencies, mainly a gun that was inneffective against enemy armor. As a result, the Chi-He was designed with the newer Type 1 47-mm high velocity gun, which despite the smaller caliber than the Type 97's gun, had superior armor penetration. Additionally, the larger turret had space for a loader which reduced the workload for the crew. Aside from this, the design of the Type 1 was strongly related to that of the earlier tank, retaining the same chassis and suspension, albeit with a slightly longer and higher hull. The other main drawback of the Type 97 was its weak armor protection, and this too was improved in the Type 1 which essentially doubled the thickness while the sloped frontal plates were now welded rather than riveted. This increased weight but was offset by a more powerful engine. Despite its superior performance, production of the Chi-He was hampered by low priority given to tank construction as a result, only around 170 were built and saw little combat, most being relegated to defense of the home islands in preparation of a US invasion.

Development of the Type 1 Chi-He was undertaken directly from the Type 97 that it was intended to replace. No variants were built, but it served as the basis for the Type 3 Chi-Nu.

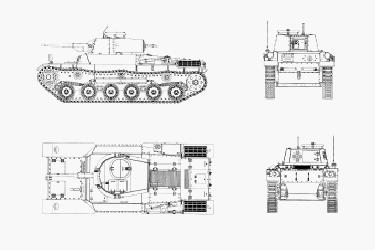

Type 1 Chi-He

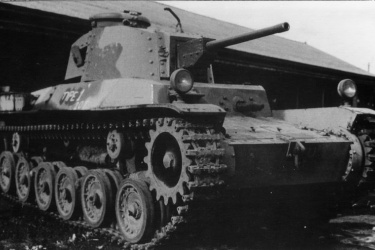

Type 1 Chi-He

Preceded by:

Type 97 Chi-Ha (1938)

Succeeded by:

Type 3 Chi-Nu (1944)

Datafile

DesignType 1
NameChi-He
TypeMedium Tank
Year1941
Crew5
Dimensions
Length (w/Gun)5.50 m
Width2.20 m
Height2.38 m
Weight
Loaded16,730 kg
SuspensionBell crank
Performance
Speed (Off-Road)43 km/h
Range (Off-Road)210 km
AmphibiousNo
Gradient60%
Powerplant
Engine1 x 240-hp
Mitsubishi
Type 100
FuelDiesel
Power/Weight14.35 hp/t
Armament
Main1 x 47-mm L/48
Type 1 47 mm
Rifled Gun (?)
↑ ? / ↓ ? / ↔ 360°

Secondary1 x 7.7-mm
Type 97 ()
Coaxial

1 x 7.7-mm
Type 97 ()
Bow

Armor
TypeSteel
Thickness8 - 50 mm
Max Effective8 - 50 mm RHAe
Production
Built170
Total170
