Main Battle Tank (1997)

Norinco

ZTZ-96

ZTZ-96B
ZTZ-96

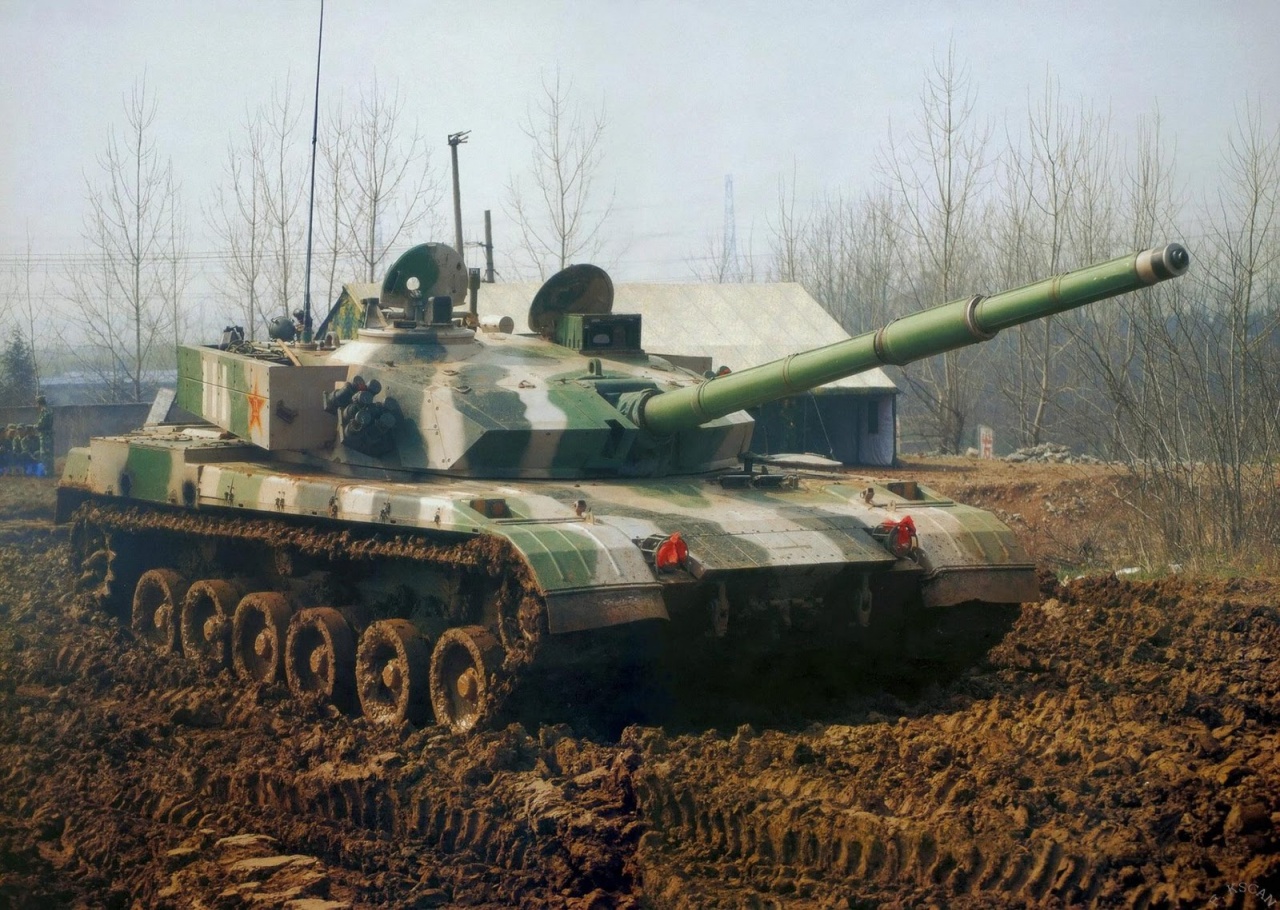

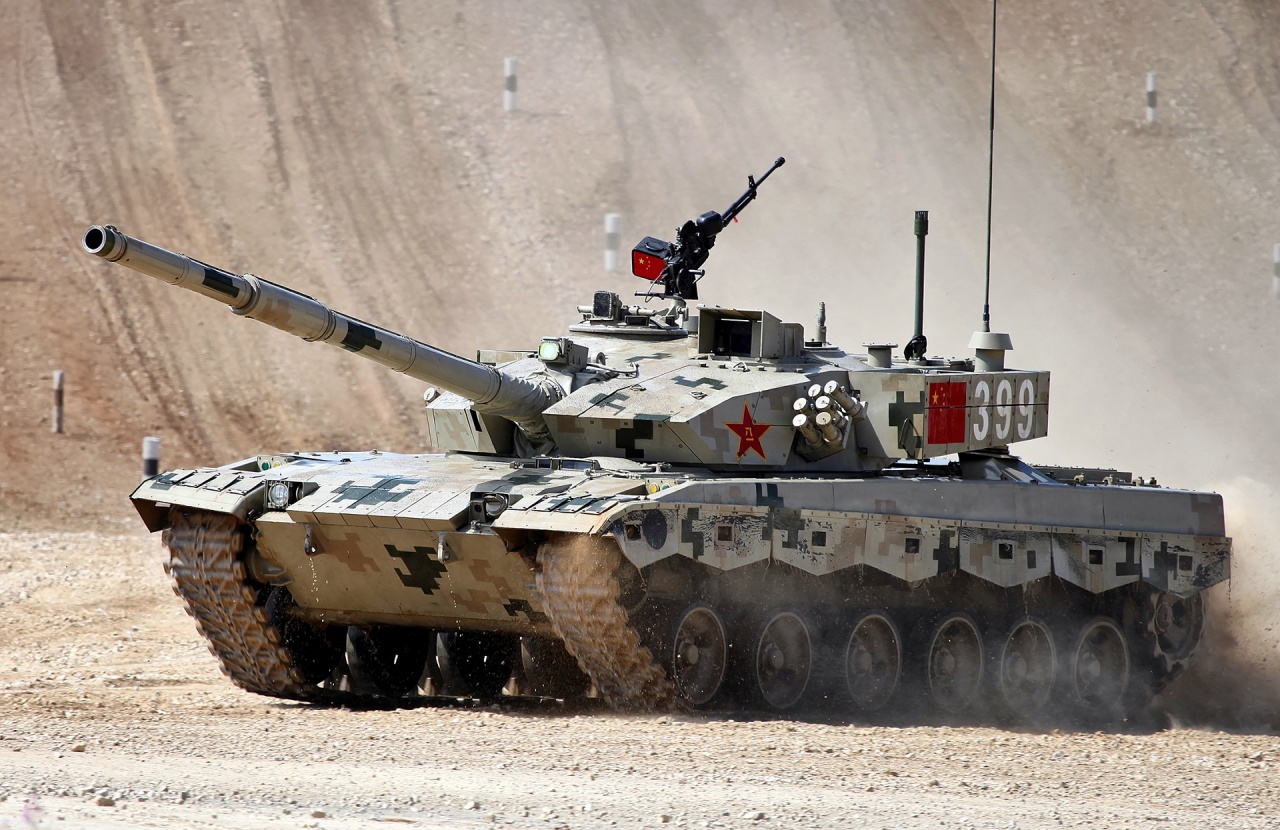

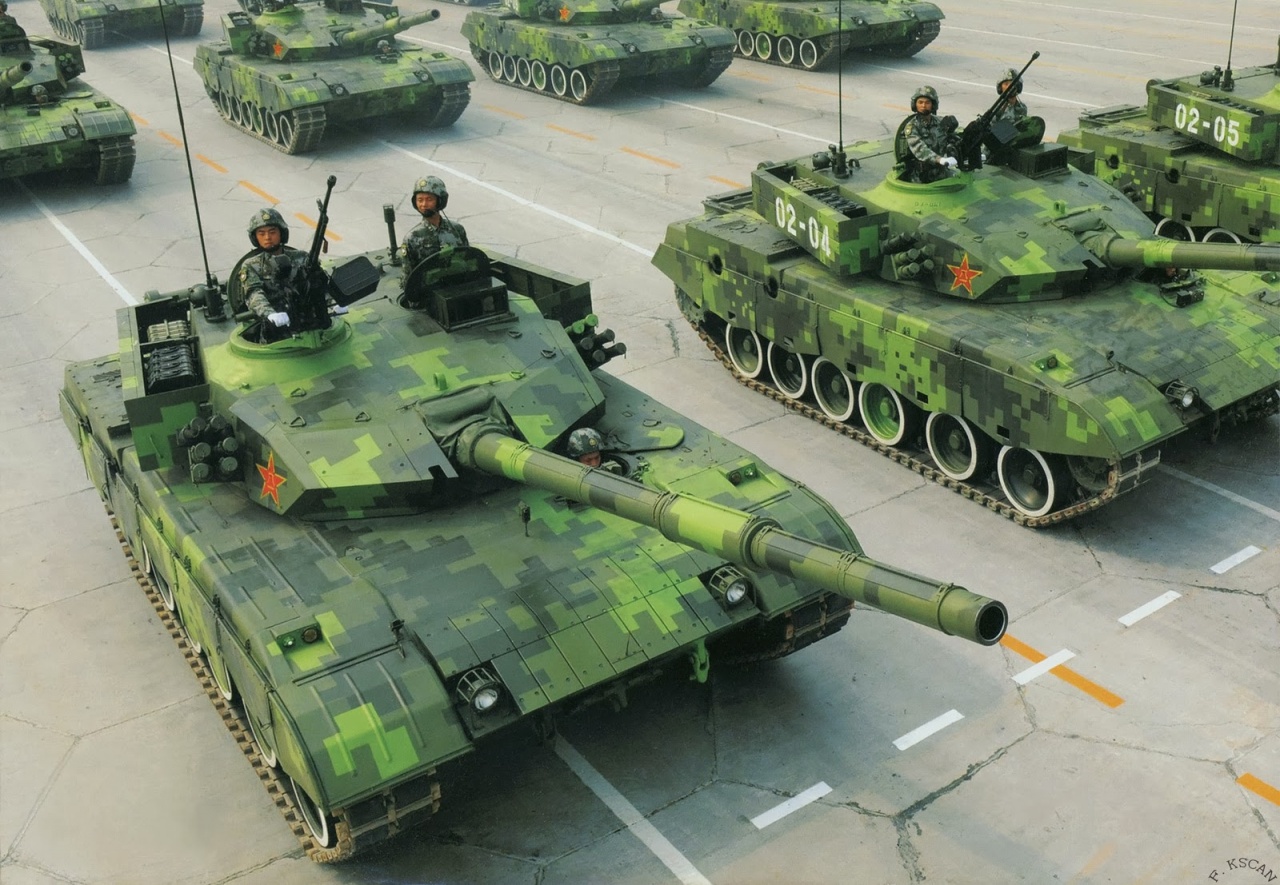

The ZTZ-96 was the designation given to the Type 85-III modified for mass production in PLA service. In its initial version it differed little from its predecessor, retaining the general layout as well as the 125-mm smoothbore gun as well as additional composite armor plates on the frontal arc coupled with ERA protection. A more comprehensive redesign resulted in the Type 96G which is easily distinguishable by the arrow-shaped modular armor on the turret front which resembles that of the Leopard 2 and also that of the ZTZ-99 which was developed concurrently. The turret also includes prominent stowage racks (emulating Western practice as seen on the M1) on the turret sides which double as extra protection against HEAT rounds. It also features a host of equipment upgrades including a new computerized fire-control system, thermal imaging sights and a soft-kill system against ATGMs. This has helped bring it close to the standard of the ZTZ-99, making it a veritable third-generation tank. The ZTZ-96 is currently in service in large numbers with the PLA; as of 2020 it was the second most numerous tank in the Chinese inventory, only behind the Type 59. The only export customer is Sudan which has allegedly used it in combat against South Sudanese T-72s.

The original ZTZ-96 (industrial designation WZ 122H) was directly based on the Type 85-III (also known as the Type 88C) with only minor modifications for PLA service. It was followed by the ZTZ-96A (also known as the ZTZ-96G), a substantial redesign which incorporates modular armor in a new arrow-shaped turret as well as numerous equipment upgrades to bring it to close to third-generation standard. An export version is known as the VT-2. The most modern version is the ZTZ-96B which has an improved engine, gun, fire-control system as well as a host of mechanical and equipment upgrades.

Preceded by:

ZTZ-85 (Type 85) (1989)

Succeeded by:

ZTZ-99 (2001)

Datafile

DesignZTZ-96
TypeMain Battle Tank
Year1997
Crew3
Dimensions
Length (w/Gun)6.33 m (10.37 m)
Width3.420 m
Height2.300 m
Ground Clearance0 m
Track0 m
Track on Ground0 m
Weight
Combat42,500 kg
Ground Pressure0 kg/cm²
SuspensionTorsion bar
Performance
Speed (Off-Road)65 km/h
Range (Off-Road)600 km
AmphibiousNo
Fording1.40 m (5 m)
Vertical Obstacle0.80 m
Trench2.70 m
Gradient60%
Powerplant
Engine1 x 1,000-hp
V-type
FuelDiesel
Power/Weight23.53 hp/t
Armament
Main1 x 125-mm L/48
ZPT-98

Smoothbore Gun
↑ 14° / ↓ -4.5° / ↔ 360°
SecondaryNone
Armor
TypeComposite/ERA
Thickness400 - 400 mm
Max Effective400 - 400 mm RHAe
Hull Upper Front400 mm
Turret Front400 mm
Production
Builtn/a
Total2,500
