Land Weapons

Assault Gun (1943)

Uralmashzavod

SU-122

SU-122 (RKKA)
SU-122

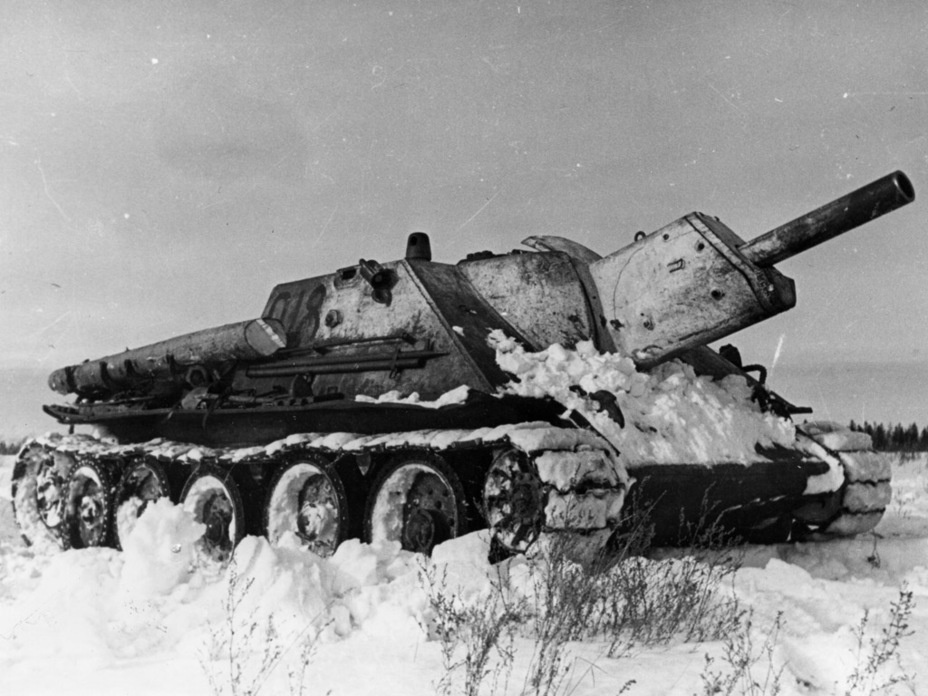

The SU-122 was designed as a successor to the SU-76 assault gun which despite being built in huge numbers, suffered from numerous teething troubles and inadequate armament. The SU-122 was also the first of the SU series of gun platforms to be based on the T-34 chassis, predating the SU-85/100 which were directly based on it in turn. As such, the SU-122 shared the T-34 characteristic sloped hull design but with the turret removed in favor of a superstructure located in the front of the hull. The superstructure, of low profile, was also fully enclosed, thereby resolving one of the main problems with the SU-76, namely its poor protection against anything beyond small arms fire. Furthermore, the large superstructure enabled it to be operated by a crew of five and the reliable T-34 chassis gave it excellent speed and mobility; enough to be able to keep up with the tanks. The SU-122 was armed with the 122mm M-30S gun which was used primarily for infantry support against enemy strongpoints, but its low muzzle velocity did not make it an effective tank-killer except at short-ranges, even when armed with HEAT rounds. The SU-122 was used in most Soviet offensive operations during 1943-44 but was discontinued from production in favor of the SU-100 tank destroyer and the SU-152 assault gun which was more effective in the infantry support role. Surviving examples remained in service briefly after the war.

Design of a new self-propelled gun mounted on a medium tank chassis began as early as April 1942, and the prototype U-35 was eventually ordered into production as the SU-122, the first of which were built in December 1942 for service the following year. There were no variants, but it served as the basis for the SU-85/100 tank destroyers that were developed later.

Preceded by:

SU-100 (1944)

Related:

T-34 (1940)

Succeeded by:

SU-152 (1943)

Datafile

DesignSU-122
TypeAssault Gun
Year1943
Crew5
Dimensions
Length (w/Gun)5.93 m (6.95 m)
Width3 m
Height2.320 m
Ground Clearance0 m
Track0 m
Track on Ground0 m
Weight
Combat30,900 kg
Ground Pressure0.68 kg/cm²
SuspensionTorsion bar
Performance
Speed (Off-Road)55 km/h (25 km/h)
Range (Off-Road)300 km (150 km)
AmphibiousNo
Fording1.30 m
Vertical Obstacle0.73 m
Trench2.50 m
Gradient63%
Powerplant
Engine1 x 500-hp
V-2-34
FuelDiesel
Power/Weight16.18 hp/t
Armament
Main1 x 122-mm L/22.7
M-30S

Howitzer
↑ 25° / ↓ -3° / ↔ 20°
SecondaryNone
Ammo122-mm: 40
Armor
TypeSteel
Thickness20 - 65 mm
Max Effective70 - 90 mm RHAe
Hull Upper Front45 mm / 50°
Hull Lower Front45 mm / 60°
Hull Upper Sides45 mm / 40°
Hull Lower Sides45 mm
Hull Lower Rear45 mm
Hull Top20 mm
Hull Bottom20 mm
Turret Mantlet65 mm / Round
Turret Front45 mm / 50°
Turret Sides45 mm / 20°
Turret Rear45 mm / 20°
Turret Top20 mm
Production
Built1,150
Total1,150
