Main Battle Tank (1995)

IVECO/Otrobreda

C1 Ariete

C1 Ariete

After decades of depending on US or German-supplied designs (some of which were produced locally), the C1 Ariete ("Ram") is the first indigenous main battle tank designed in Italy for the Italian Army. The C1 features a conventional third-generation design of all-welded steel with an additional layer of composite materials for added protection over the frontal arc. The turret has a sloped front although the sides and rear are straight. Further protection is provided by blow-out panels on the turret roof, and an NBC system is installed as well. Armament is composed of an Oto Melara 120-mm smoothbore, with a gun chamber identical to that of its Rheinmetall equivalent (used on the Leopard 2 and M1), which enables compatibility with most NATO ammunition. Suspension is composed of torsion bars and numerous mechanical components (including the transmission) are of German origin, built under license in Italy. Most electronic equipment, including the fire-control system are locally designed and some are shared with the B1 Centauro. The C1 entered service after the Cold War ended and remains the main front-line tank in the Italian Army, with no export orders received. Deficiencies in the powerplant have prompted various proposed upgrades but these have not materialized.

Plans for a new main battle tank were issued in 1982 and the first prototype C1 Ariete was ready in 1986. A planned Mk 2 has been in development but this and various other incremental upgrades have been delayed due to financial difficulties.

Preceded by:

OF-40 (1981)

Succeeded by:

None

Datafile

DesignC1 Ariete
TypeMain Battle Tank
Year1995
Crew4
Dimensions
Length (w/Gun)7.59 m (9.67 m)
Width3.601 m
Height2.500 m
Ground Clearance0.480 m
Track2.802 m
Track Width618 mm
Track on Ground0 m
Weight
Combat54,000 kg
Ground Pressure0.90 kg/cm²
SuspensionTorsion bar
Performance
Speed (Off-Road)65 km/h
Range (Off-Road)550 km
AmphibiousNo
Fording1.20 m (4 m)
Vertical Obstacle1 m
Trench3 m
Gradient60%
Side Slope30%
Powerplant
Engine1 x 1,300-hp
IVECO
V-12 MTCA
FuelDiesel
Power/Weight24.07 hp/t
Armament
Main1 x 120-mm L/44
OTO Melara 120/44

Smoothbore Gun
↑ 20° / ↓ -9° / ↔ 360°
SecondaryCoaxial:
1 x 7.62-mm
MG 42/59
Anti-Aircraft:
1 x 7.62-mm
MG 42/59
Ammo7.62-mm: 2,400
Armor
TypeComposite
Thickness140 - 500 mm
Max Effective470 - 500 mm RHAe
Hull Upper Front470 mm
Turret Front500 mm
Turret Sides140 mm
Production
Built200
Total200

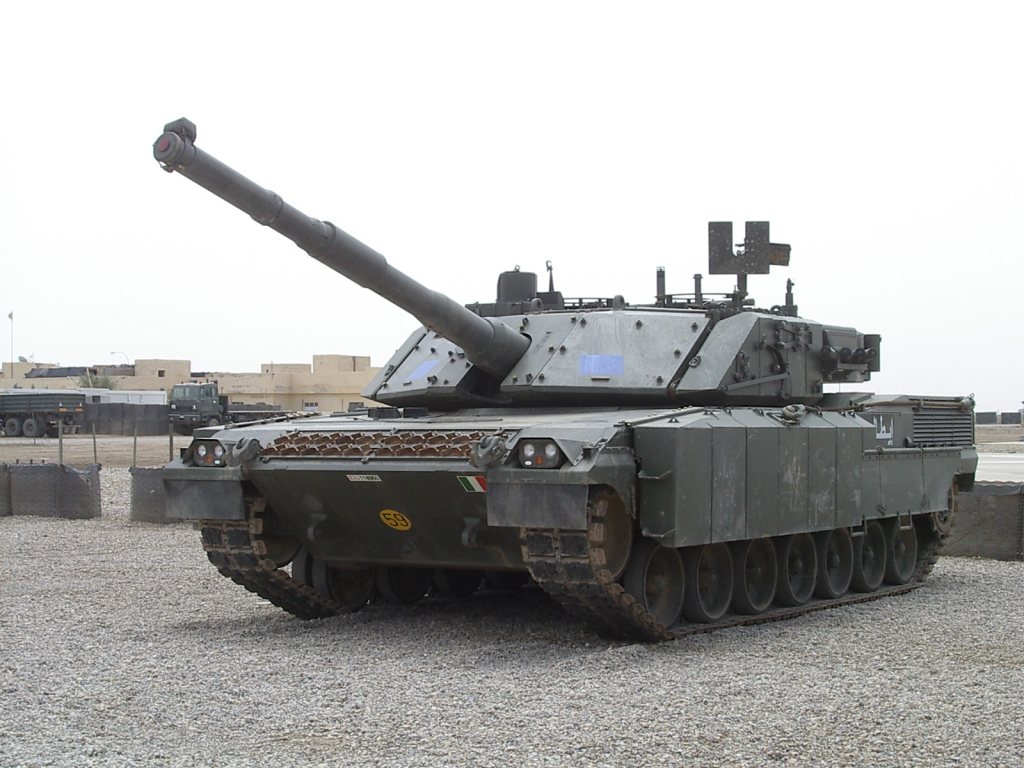

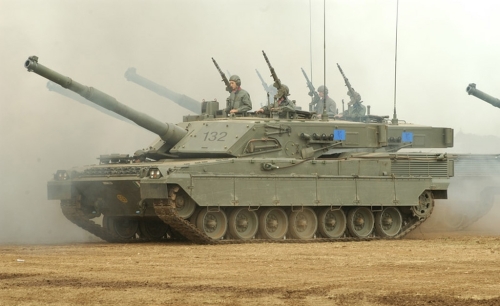

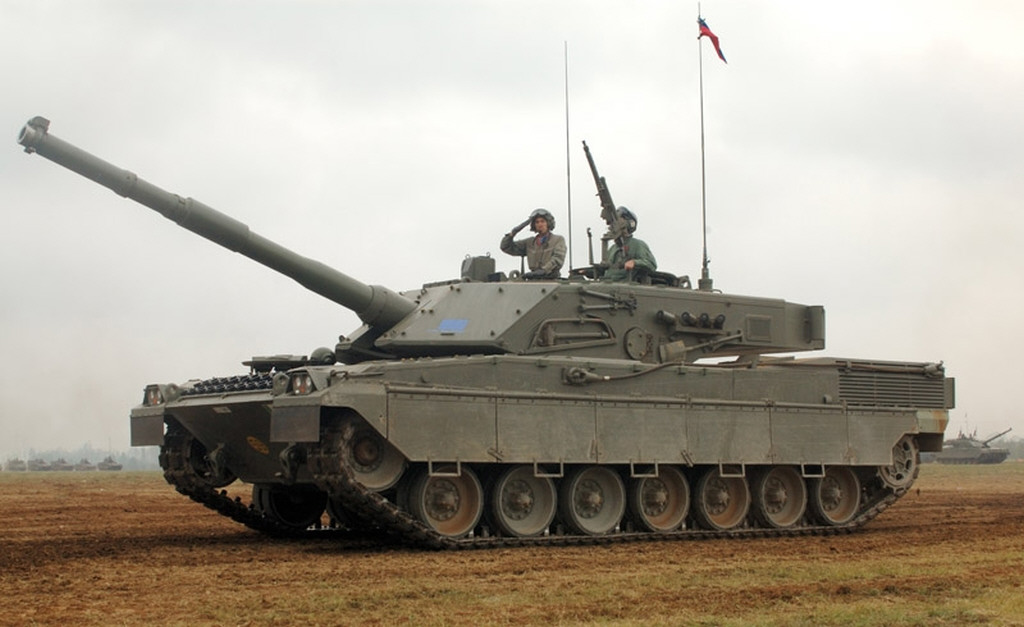

Gallery
