Torpedo Bomber (1936)

Fairey

Swordfish

Swordfish

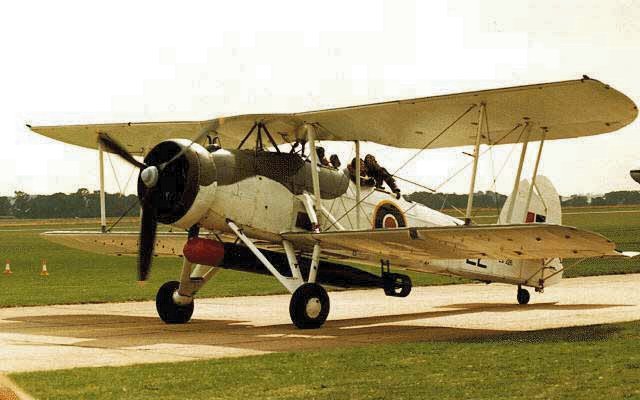

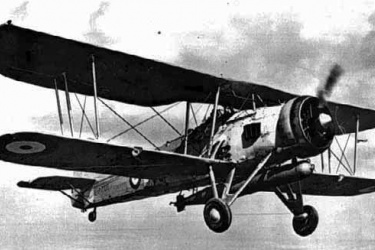

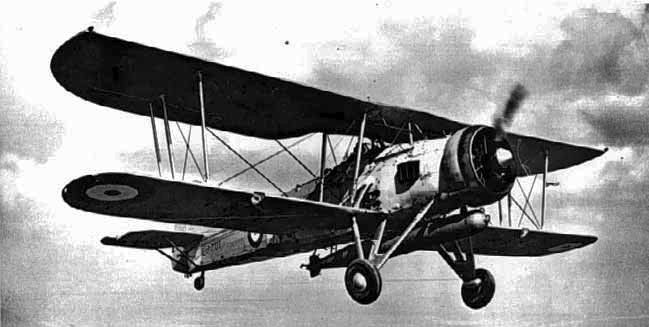

It is quite ironic that Britain's most famous naval aircraft, the Fairey Swordfish (nicknamed the "Stringbag"), would seem more in place in World War I than in a mid-century conflict. First flown in 1934, it was a lumbering and archaic biplane with an open cockpit and fixed landing gear. Still, it was the Fleet Air Arm's most important asset when the war began, and is legendary for its participation in the 1940 Taranto strike where just 20 of these aircraft from the carrier HMS Illustrious sank three Italian battleships in harbor for just two losses, neutralizing Mussolini's fleet and inspiring the Japanese for a similar attack against Pearl Harbor. Swordfishes also fatally crippled the Bismarck in 1941 and tried unsuccessfully to sink the German fleet during the 'Channel Dash' in February 1942. Even though various successors were designed, the Swordfishes were produced until 1944 and served until the end of the war, long after its successor, the Albacore, had been phased out of service.

The first prototype Swordfish, designated TSR.II first flew on 17 April 1934 and was introduced in service as the Mk. I, these included both aircraft with wheel and float landing gear. They served in the torpedo-reconnaissance role on board Royal Navy carriers, battleships and cruisers. The Mk. II had a strengthened lower wing which enabled it to accommodate rockets in addition to a more powerful Pegasus 30 engine which would also be installed in all further marks. Later, the Mk. III had an ASV radar between the landing gear and the Mk. IV (a Mk. II conversion) featured a more modern closed cockpit and was built for use by Canada.

Preceded by:

None

Succeeded by:

Albacore (1940)

Datafile

DesignSwordfish Mk. ISwordfish Mk. II
TypeTorpedo BomberTorpedo Bomber
Year19361943
Crew33
Dimensions
Length10.87 m10.87 m
Height3.759 m3.759 m
Wing Span13.87 m13.87 m
Wing Arean/an/a
Weight
Empty2,132 kg2,132 kg
Maximum3,946 kg4,196 kg
Wing Loading70.0 kg/m²74.4 kg/m²
Performance
Speed222 km/h222 km/h
Ceiling5,867 m5,867 m
Range1,658 km879 km
Powerplant
Engine1 x Pegasus IX
Bristol
515 kW
1 x Pegasus XXX
Bristol
559 kW
Thrust/Weight0.290.32
Armament
Guns1 x .303-in
Vickers
1 x .303-in
Vickers K
1 x .303-in
Vickers
1 x .303-in
Vickers K
Payload680 kg680 kg
AS WeaponsMk. XII
Mk. XII/XV
RP-3
Production
Built9891,080
Total2,391
