Air Weapons

Torpedo Bomber (1940)

Fairey

Albacore

Albacore

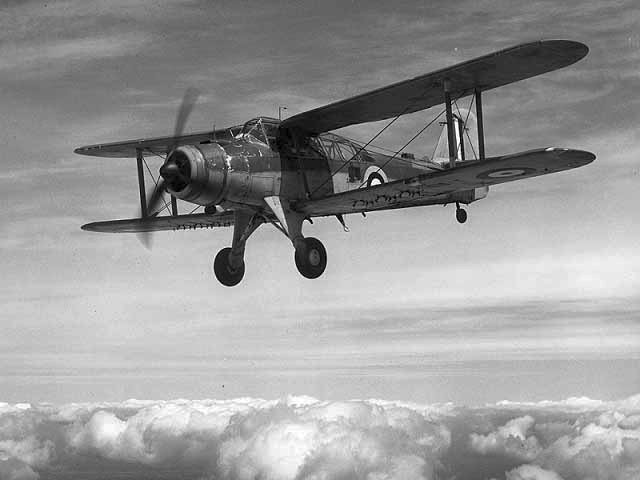

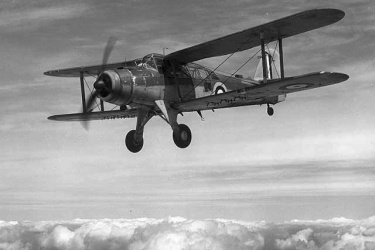

The Fairey Albacore was designed as an improved version of the legendary Swordfish torpedo bomber. Though also built as a biplane, it featured a closed cockpit, hydraulic flaps, and a more cleaned-up look in addition to being able to carry a heavier payload than its predecessor. It suffered from slow speed but was active in most theaters of war, notably the Mediterranean where it scored hits against the Italian battleship Vittorio Venetto during the Battle of Cape Matapan. It was also active in the desert and during the invasions of Sicily, Italy and Southern France. Sadly, a series of unsuccessful missions over Norway and against the Tirpitz sealed its reputation as a failure despite its modest success elsewhere and as a consequence ended up being outlasted by the Swordfish in both service and production. Still, a number continued in service with the Royal Canadian Air Force which used it on D-Day.

The first Albacore prototype was flown in 12 December 1938, the only production variant was the Mk. I though some aircraft had a more powerful Taurus XII engine installed.

Preceded by:

Swordfish (1936)

Succeeded by:

Barracuda (1943)

Datafile

DesignAlbacore Mk. I
TypeTorpedo Bomber
Year1940
Crew3
Dimensions
Length12.13 m
Height4.648 m
Wing Span15.24 m
Wing Arean/a
Weight
Empty3,289 kg
Maximum4,745 kg
Wing Loading82.0 kg/m²
Performance
Speed259 km/h
Ceiling6,309 m
Range1,320 km
Powerplant
Engine1 x Taurus II
Bristol
794 kW
Thrust/Weight0.29
Armament
Guns1 x .303-in
Vickers
1-2 x .303-in
Vickers K
Payload907 kg
AS WeaponsMk. XV
Production
Built798
Total800
