Bomber (1974)

Sukhoi

Su-24 'Fencer'

Su-24M 'Fencer-D'
Su-24M

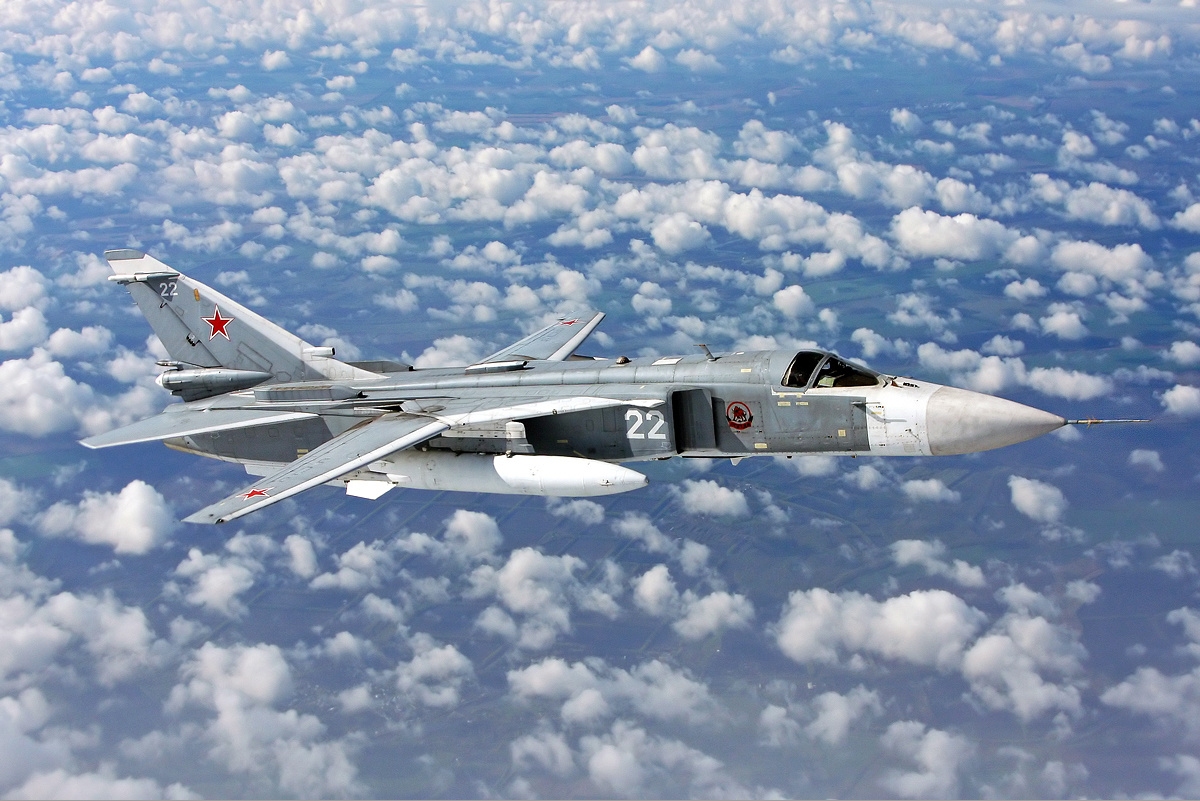

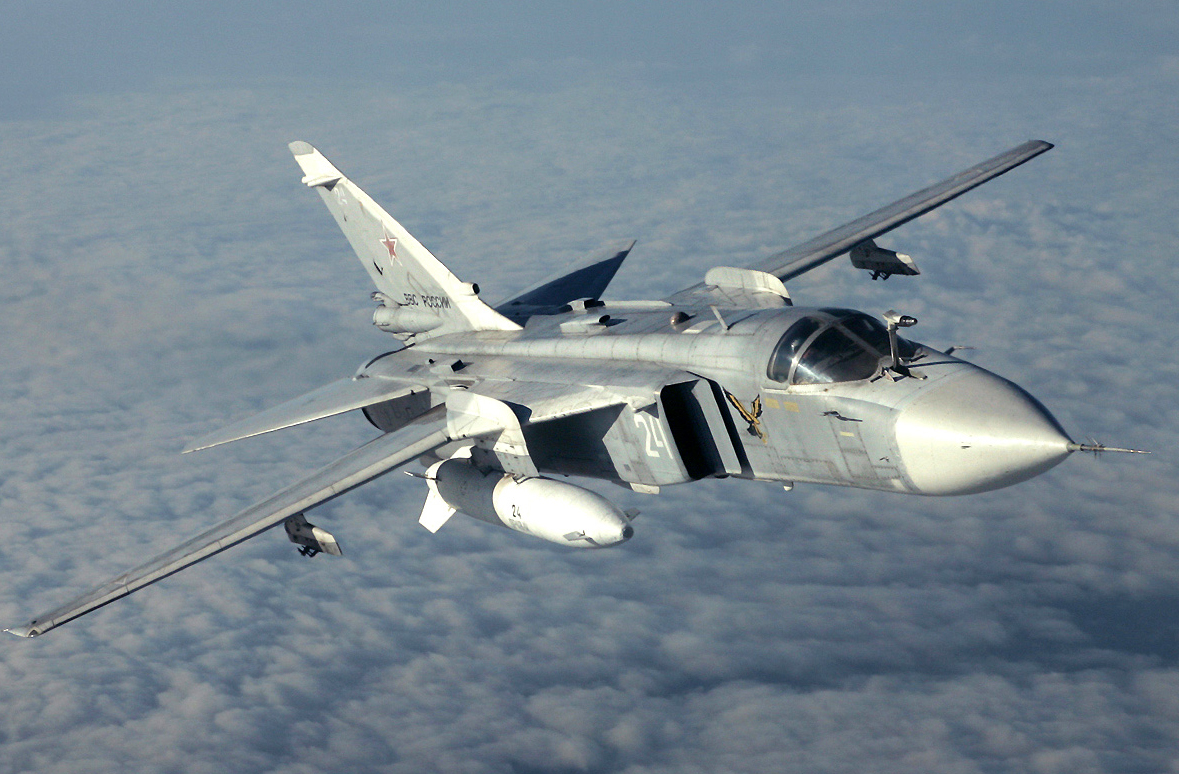

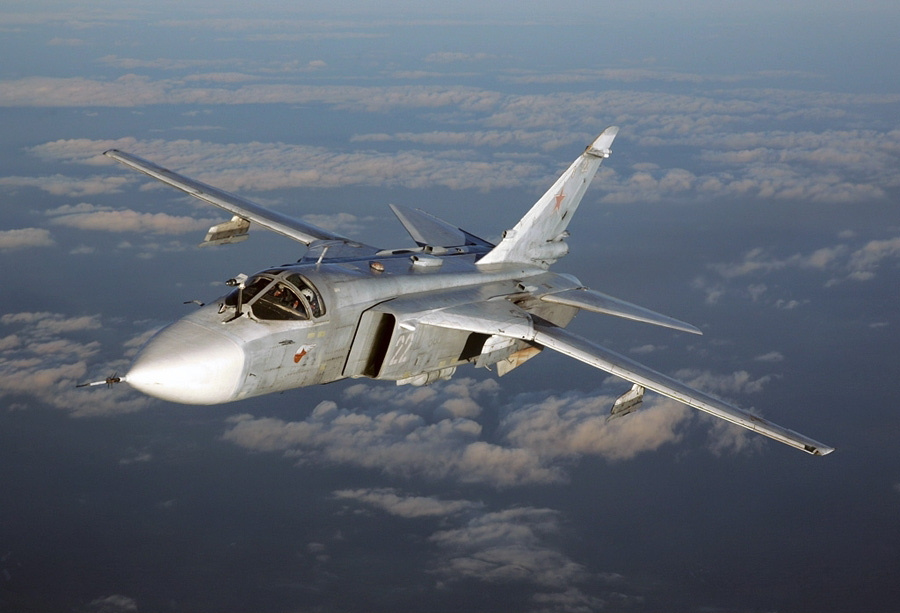

Almost identical in role and appearance to the US F-111, the Sukhoi Su-24 'Fencer' is a low-level variable-wing tactical bomber with nuclear capability that entered service in the mid-1970's. At first it was regarded as such a secret by the Soviets that it was not deployed into Frontal Aviation units until the following decade. Like the F-111, the Su-24 features a side-by-side crew configuration composed of a pilot and a weapons systems officer (the first in a modern Soviet tactical aircraft), however, unlike its US counterpart, the Su-24 lacks an internal bomb bay, thus relying solely on external hardpoints giving it considerably less payload. The variable-wing configuration gave the Su-24 excellent performance at low altitudes, which made it ideal for deep penetration raids, but also allows for short take-off and landings. The Su-24 was gradually improved with more powerful ECM capabilities as well as the ability to carry laser-designators and other electro-optical targeting equipment for the use of laser-guided bombs. As a result, Su-24s can currently carry most Russian tactical air-to-ground ordinance, both conventional and nuclear. The Su-24 was a potent addition to the Soviet arsenal and proved its worth during the Afghanistan War as well as the war in Chechnya (a Su-24 reportedly killed Chechen leader Dzohkar Dudayev with a guided missile which homed in on his satellite phone). It has since been used in in the Syrian Civil War, both by government as well as Russian forces. The Su-24 was exported to Algeria, Iraq, Iran, Libya, Sudan and Syria, many which have also used it in combat.

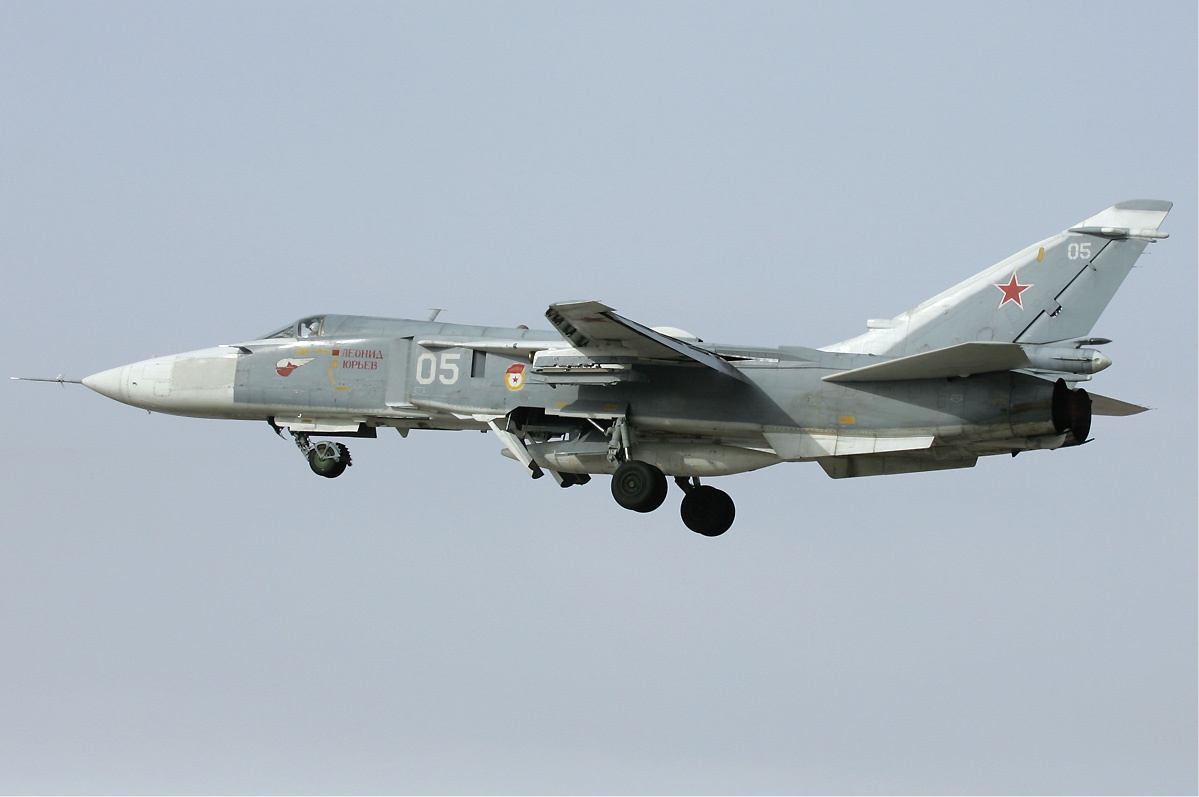

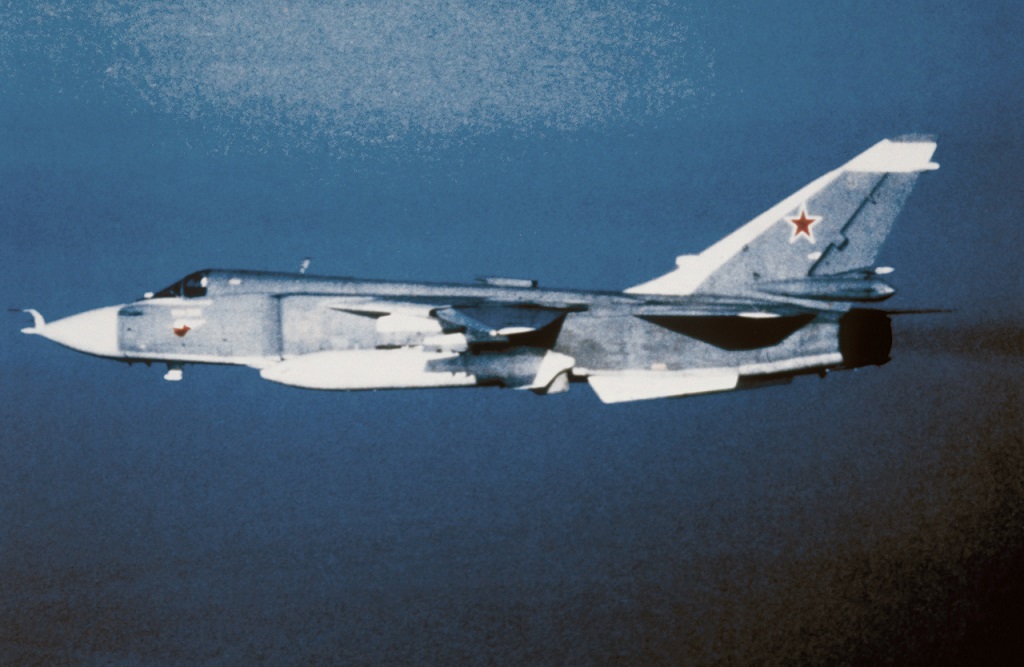

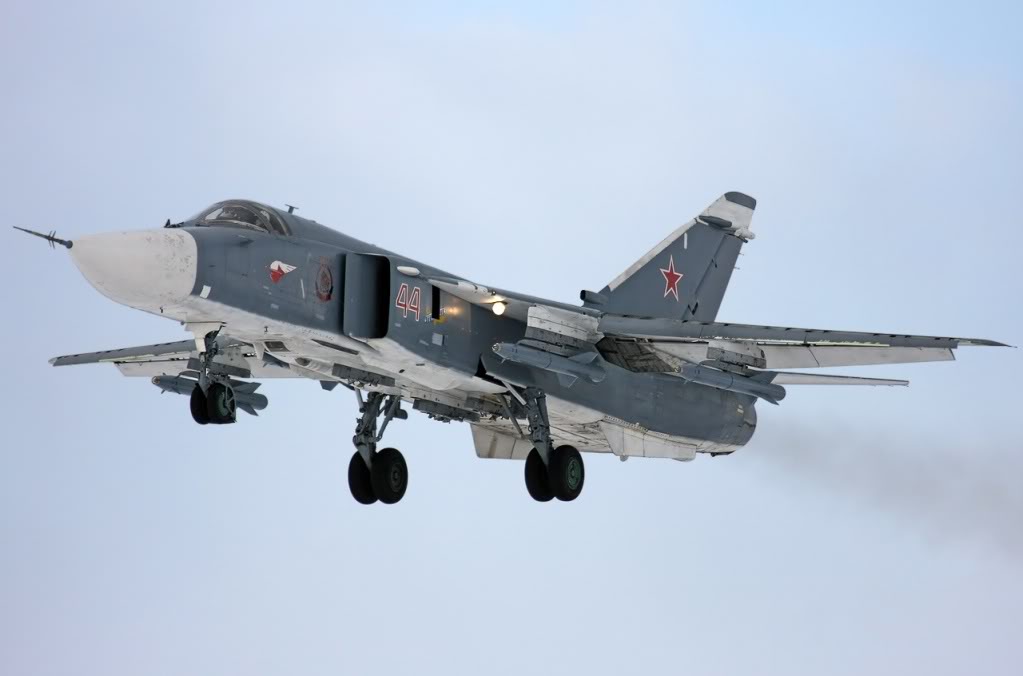

Erroneously known in the West as the Su-19, the Su-24 was first flown in prototype form on 17 January 1970. Early production variants included the Su-24 'Fencer-A' and the Su-24 'Fencer-B'. These were succeeded by the Su-24 'Fencer-C' which became the standard production version and featured uprated avionics and fairings for RWR. Reliability issues with the avionics resulted in the Su-24M 'Fencer-D', this version had new terrain-following radar and a new nav/attack system which includes laser and TV weapons guidance. It can also be distinguished by its longer nose. An export version with downgraded avionics is known as the Su-24MK while a further upgraded version is known as the Su-24M2 in Russian service, and includes GLONASS navigation, a glass cockpit, and expanded weapons capability. Other variants include the Su-24MR 'Fencer-E' tactical reconnaissance aircraft and the Su-24MP 'Fencer-F' for electronic warfare.

Preceded by:

None

Succeeded by:

Su-34 'Fullback' (2011)

Datafile

DesignSu-24Su-24M
Code NameFencer-CFencer-D
TypeAttackAttack
Year19741983
Crew22

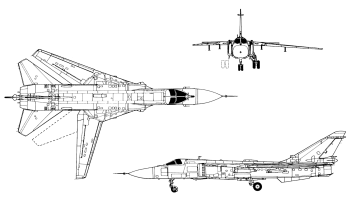

Dimensions
Length22.67 m24.53 m
Height5.920 m6.190 m
Wing Span17.64 m / 10.37 m17.64 m / 10.37 m
Wing Arean/an/a
Weight
Empty21,200 kg22,320 kg
Loaded32,300 kg38,040 kg
Maximum39,700 kg43,755 kg
Wing Loading719.2 kg/m²792.7 kg/m²
Performance
SpeedMach 1.5Mach 1.4
Speed S/LMach 1.1Mach 1.1
Ceiling11,000 m11,000 m
Range3,055 km2,775 km
Powerplant
Engine2 x AL-21F-3A
Saturn/Lyulka
7,800 / 11,200 (+) kgf
2 x AL-21F-3A
Saturn/Lyulka
7,800 / 11,200 (+) kgf
Fuel Load9,800 kg11,100 kg
Thrust/Weight0.670.64
Sensors
RadarOrion-A
Orion-A
Armament
Guns1 x 23-mm
GSh-6-23M
1 x 23-mm
GSh-6-23M
Payload7,000 kg8,000 kg
Hardpoints89
AA WeaponsR-55
R-60
R-73
AS WeaponsFAB-100/250/500
FAB-1000/1500
Kh-23
Kh-28
Kh-58
KMGU-2
OFAB-100-120
SPPU-6
BETAB-500
Kh-23
Kh-25/27
Kh-28
Kh-29
Kh-31
Kh-58
Kh-59
FAB-100/250/500
FAB-1500
KAB-500/1500
KMGU-2
RBK-250/500
S-5/8/13/24/25
TN-1000/1200
Production
Builtn/an/a
Total1,400
