Air Weapons

Fighter (1945)

Grumman

F7F Tigercat

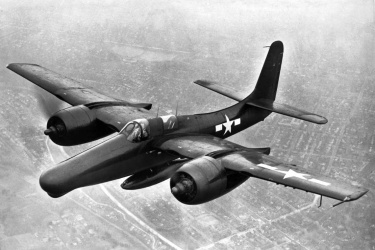

F7F-3N Tigercat (USMC)
F7F-1

The Grumman F7F Tigercat was the first twin-engined fighter designed for the US Navy, intended to serve on the new Midway-class carriers, but which like the F7F were too late to see action during World War II. The F7F was an extremely high perfoming aircraft: its max speed was considerably superior to the Hellcat, its immediate predecessor, and could also be adapted to fulfill the night fighter and attack roles (even armed with a torpedo) as well as photo-reconnaissance. Armament consisted of four 20-mm cannon mounted on the wing roots with an additional four .50-in machine guns giving it a bigger punch than any other wartime USN or USMC aircraft. It was also the first carrier-based aircraft to feature a tricycle landing gear. Still, the Tigercat was not initially deemed suitable for carrier operations due to weight and stability issues which were corrected only much later in its service life, with only a trickle of carrier-capable aircraft ever entering service. Ultimately, the F7F was quickly overshadowed by the newer jets entering service in the immediate post-war era although this did not prevent them from seeing combat with the USMC during the Korean War (primarily as night fighters and night interdictors) until retired in 1952.

The prototype XF7F-1 first flew on 3 November 1943 and exceeded expecations, resulting in immediate orders for the USMC. However, pre-production changes resulted in the aircraft entering service only after the war ended as the F7F-1. A twin-seat night-fighter version equipped with AN/APS-6 radar followed with the F7F-2N after which the main production variant, the single-seat F7F-3 appeared with an upgraded engine and enlarged tailfin. Sub-variants included the F7F-3E electronic warfare platform, F7F-3N night fighter, and photo-recon F6F-3P. The final variant was the F7F-4N night fighter, the only version that was cleared for carrier operations, although only 13 aircraft were built.

Preceded by:

F6F Hellcat (1943)

Succeeded by:

F9F Panther / Cougar (1950)

Datafile

DesignF7F-3
NameTigercat
TypeHeavy Fighter
Year1945
Crew1
Dimensions
Length13.82 m
Height5.055 m
Wing Span15.70 m
Wing Arean/a
Weight
Empty7,380 kg
Maximum11,667 kg
Wing Loading276.0 kg/m²
Performance
Speed700 km/h
Cruise Speed357 km/h
Ceiling12,405 m
Range1,931 km
Powerplant
Engine2 x R-2800-34W
Pratt & Whitney
1,566 kW
Thrust/Weight0.52
Armament
Guns4 x 20-mm
M3 Hispano (200)
4 x .50-in
M2 Browning (400)
Payload907 kg
Hardpoints3
AS WeaponsGP 500/1000
HVAR (8)
Tiny Tim (3)
Production
Built189
Total364
