Air Weapons

Fighter (1950)

Grumman

F9F Panther / Cougar

F9F Panther / Cougar
F9F Panther / Cougar

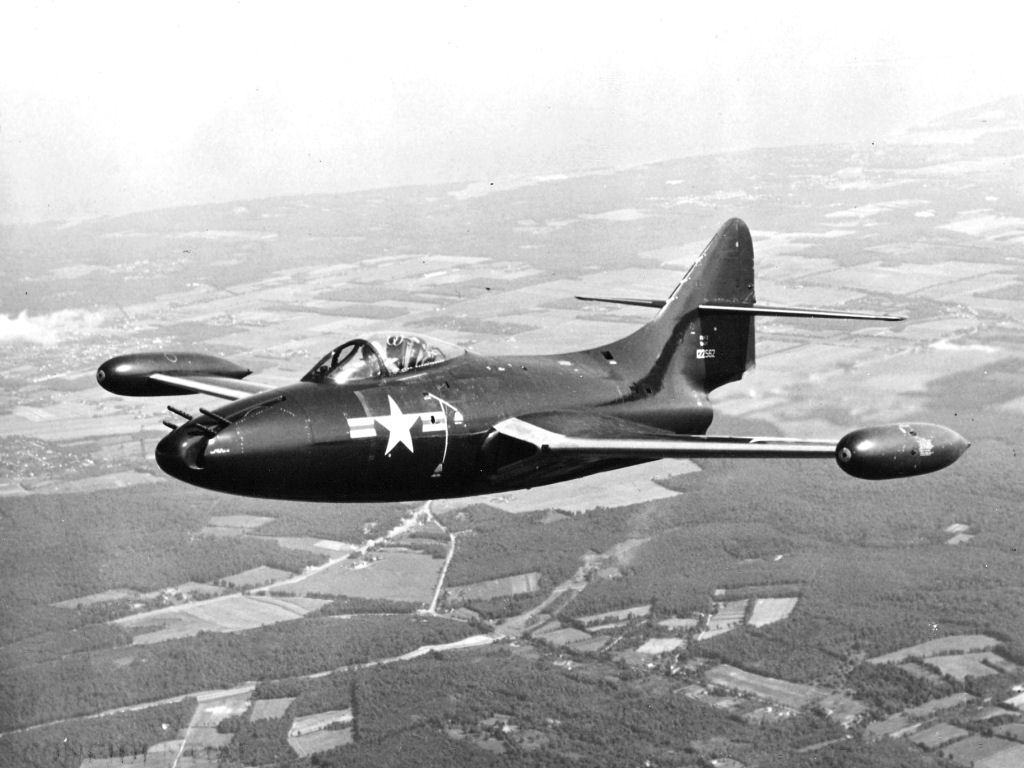

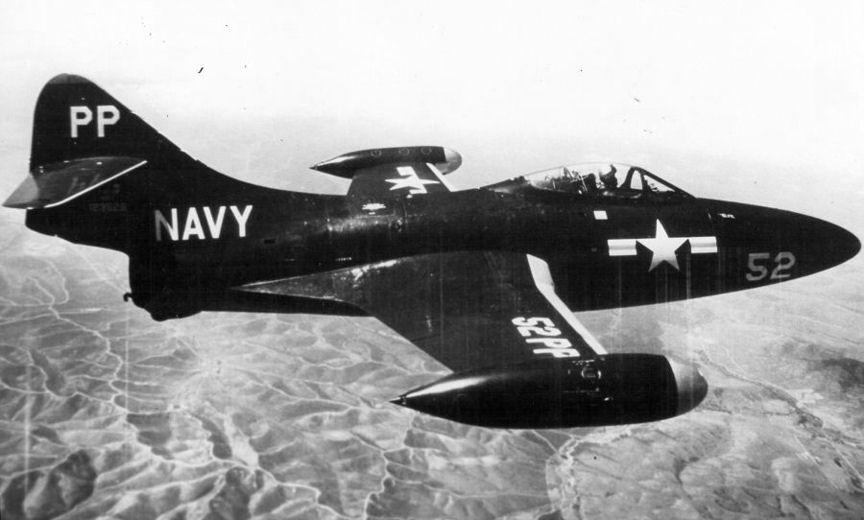

Not to be left behind in the post-war jet revolution, the Grumman F9F Panther was the company's first major jet fighter to be operated by the US Navy and second only to the FH Phantom. The F9F was originally designed as a four-engined carrier-based fighter but testing with imported Rolls-Royce Nene engines meant that only one of these was necessary to power the new successor to the legendary Grumman 'cats'. Like most early jets, the F9F featured straight wings with wingtip fuel tanks which would be one of its main distinguishing features although swept wings would eventually be installed in the improved F9F Cougar which was otherwise nearly identical. A total of 24 USN and USMC squadrons were equipeed with the F9F during the Korean War where it was used mainly for ground attack althought it did achieve distinction by scoring the first naval kill of the war (a Yak-9) and the first jet vs jet combat of the USN when one shot down a MiG-15. The only export operator was Argentina while some Cougars would fly well until the Vietnam War as forward air controllers.

The XF9F-1 Panther had originally been designed with four Westinghouse J30 turbojets but these were replaced by the Rolls-Royce Nene in the XF9F-2 which first flew on 24 November 1947. Production versions began with the F9F-2 powered by a locally built version of the British engine while the F9F-3 used Westinghouse J33s which due to reliability issues were replaced. These were followed by the F9F-4 (J33) and -5 (Rolls-Royce Tay) of which the grand majority of the former ended up yet again with the Tay. A photo-reconnaissance version of the Panther was known as the F9F-2P. Next up was the XF9F-6 which first flew on 20 September 1951 and featured swept wings and the removal of the wingtip tanks (photo recon versions were known as the F9F-6P). Subsequent versions included the F9F-7 with J33 engines and the ultimate F9F-8 with a lengthened fuselage and modified wing (redesignated F-9J in 1962). Subvariants were the F9F-8P with cameras and the -8B (AF-9J) ground attack version with missile carrying capability. A two seat trainer was also known as the F9F-8T (TF-9J) and was the last to be retired from US Reserve units in the 1970s.

Preceded by:

F8F Bearcat (1945)

Succeeded by:

F11F Tiger (1956)

Datafile

DesignF9F-2F9F-5F9F-6F9F-8
NamePantherPantherCougarCougar
TypeFighterFighterFighterFighter
Year1950195119521954
Crew1111
Dimensions
Length11.42 m11.84 m12.62 m12.85 m
Height3.454 m3.734 m3.759 m3.734 m
Wing Span11.58 m11.58 m10.52 m10.52 m
Wing Arean/an/an/an/a
Weight
Empty4,220 kg4,603 kg5,105 kg5,382 kg
Maximum8,842 kg8,492 kg9,526 kg11,232 kg
Wing Loading380.7 kg/m²365.6 kg/m²341.8 kg/m²358.8 kg/m²
Performance
Speed925 km/h972 km/h1,052 km/h1,041 km/h
Ceiling13,594 m13,045 m13,594 m12,954 m
Range2,177 km2,092 km1,500 km1,690-2,111 km
Powerplant
Engine1 x J42-P-6/8
Pratt & Whitney
2,699 kgf
1 x J48-P-6A
Pratt & Whitney
3,175 kgf
1 x J48-P-8
Pratt & Whitney
2,835 kgf
1 x J48-P-8A
Pratt & Whitney
3,289 kgf
Thrust/Weight0.580.630.500.56
Armament
Guns4 x 20-mm
4 x 20-mm
4 x 20-mm
4 x 20-mm
Payload907 kg907 kg907 kg907 kg
Hardpoints2224
AA Weapons---AIM-9
Production
Built567616646601
Total3,375
All: Total production, 1,387 (Panther) and 1,988 (Cougar)
