Sea Weapons

Ballistic Missile Submarine, Nuclear

Ohio

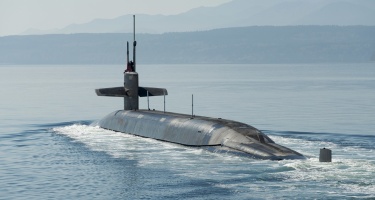

USS Henry M. Jackson (SSBN-730)

Preceded by:

Lafayette (1963)

Succeeded by:

None

Datafile

ClassOhioOhio (SSGN)
TypeBallistic Missile Submarine, NuclearGuided Missile Submarine, Nuclear
Year19812006
Crew155155
Dimensions
Length170.7 m170.7 m
Beam12.8 m12.8 m
Draught10.8 m10.8 m
Displacement
Empty16,600 t16,600 t
Surfaced
Submerged
Performance
Speed44 km/h44 km/h
RangeUnlimitedUnlimited
Depth300 m300 m
Machinery
Shafts11
Turbines2 x
60,000 hp
S6G
2 x
60,000 hp
S6G
Boilers1 x General Electric S8G1 x General Electric S8G
FuelNuclearNuclear
Armament
Torpedo tubes2x2 x (533-mm)
2x2 x (533-mm)
Launcher24 x Trident I C4 SLBM154 x Mk. 45 VLS
AA Weapons-UGM-109E TLAM-IV (154)
Armor
ArmorNoneNone
Sensors
RadarBPS-15A
BPS-15A
SonarBQQ-6
BQS-13
BQR-19
BQR-23
BQQ-6
BQS-13
BQR-19
BQR-23
Production
Built184
Total18

Registry

Ship Code Builder Laid Launch Comm Decomm Fate
Ohio SSBN-726 Electric Boat10/04/7607/04/7911/11/81-Active
Michigan SSBN-727 Electric Boat04/04/7726/04/8011/09/82-Active
Florida SSBN-728 Electric Boat19/01/8114/11/8118/06/83-Active
Georgia SSBN-729 Electric Boat07/04/7906/11/8211/02/84-Active
Henry M. Jackson SSBN-730 Electric Boat19/11/8115/10/8316/10/84-Active
Alabama SSBN-731 Electric Boat27/08/8119/05/8425/05/85-Active
Alaska SSBN-732 Electric Boat09/03/8312/01/8525/01/86-Active
Nevada SSBN-733 Electric Boat08/08/8314/09/8516/08/86-Active
Tennessee SSBN-734 Electric Boat09/06/8613/12/8617/12/88-Active
Pennsylvania SSBN-735 Electric Boat02/03/8723/04/8809/09/89-Active
West Virginia SSBN-736 Electric Boat18/12/8714/10/8920/10/90-Active
Kentucky SSBN-737 Electric Boat18/12/8711/08/9013/07/91-Active
Maryland SSBN-738 Electric Boat22/04/8610/08/9113/06/92-Active
Nebraska SSBN-739 Electric Boat06/07/8715/08/9210/07/93-Active
Rhode Island SSBN-740 Electric Boat15/09/8817/07/9309/07/94-Active
Maine SSBN-741 Electric Boat03/07/9016/07/9429/07/95-Active
Wyoming SSBN-742 Electric Boat08/08/9115/07/9513/07/96-Active
Louisiana SSBN-743 Electric Boat23/10/9227/07/9606/09/97-Active

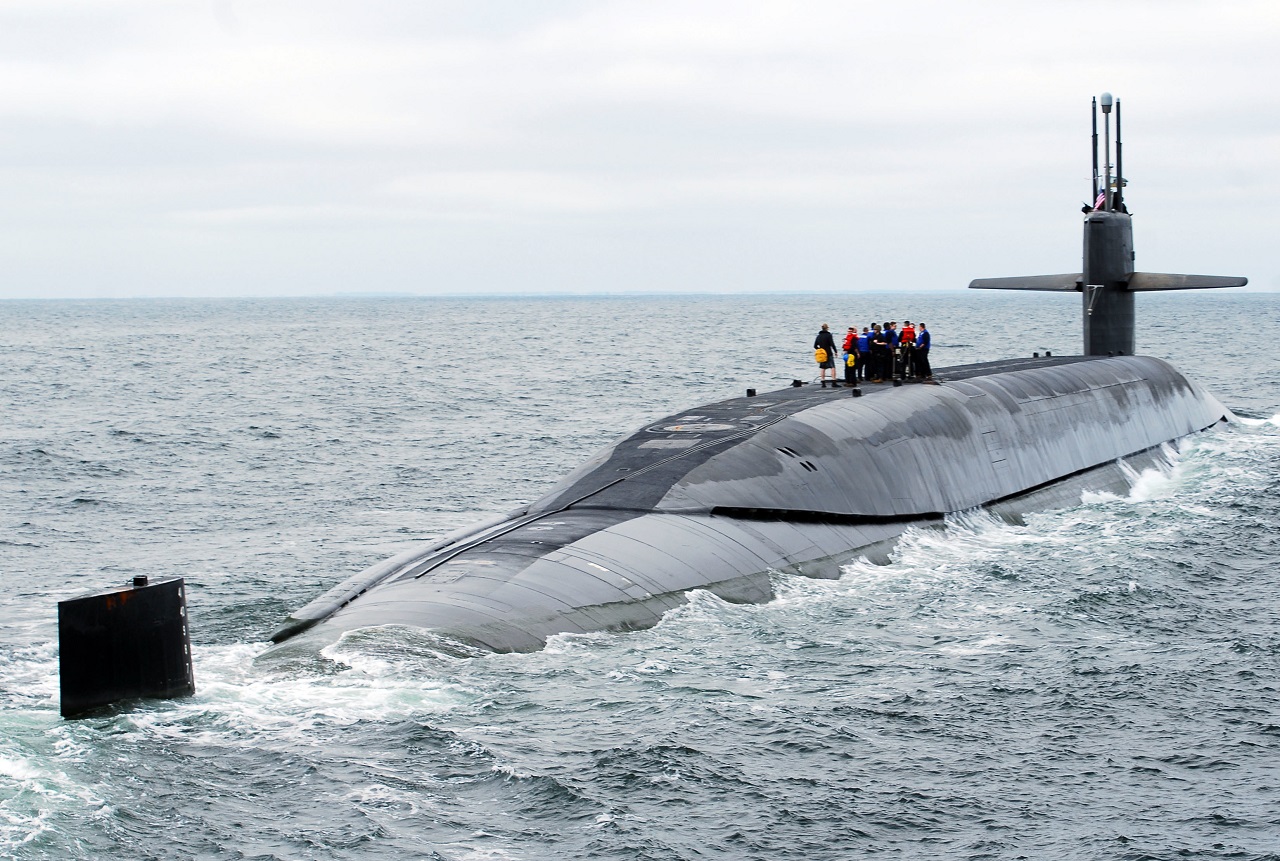

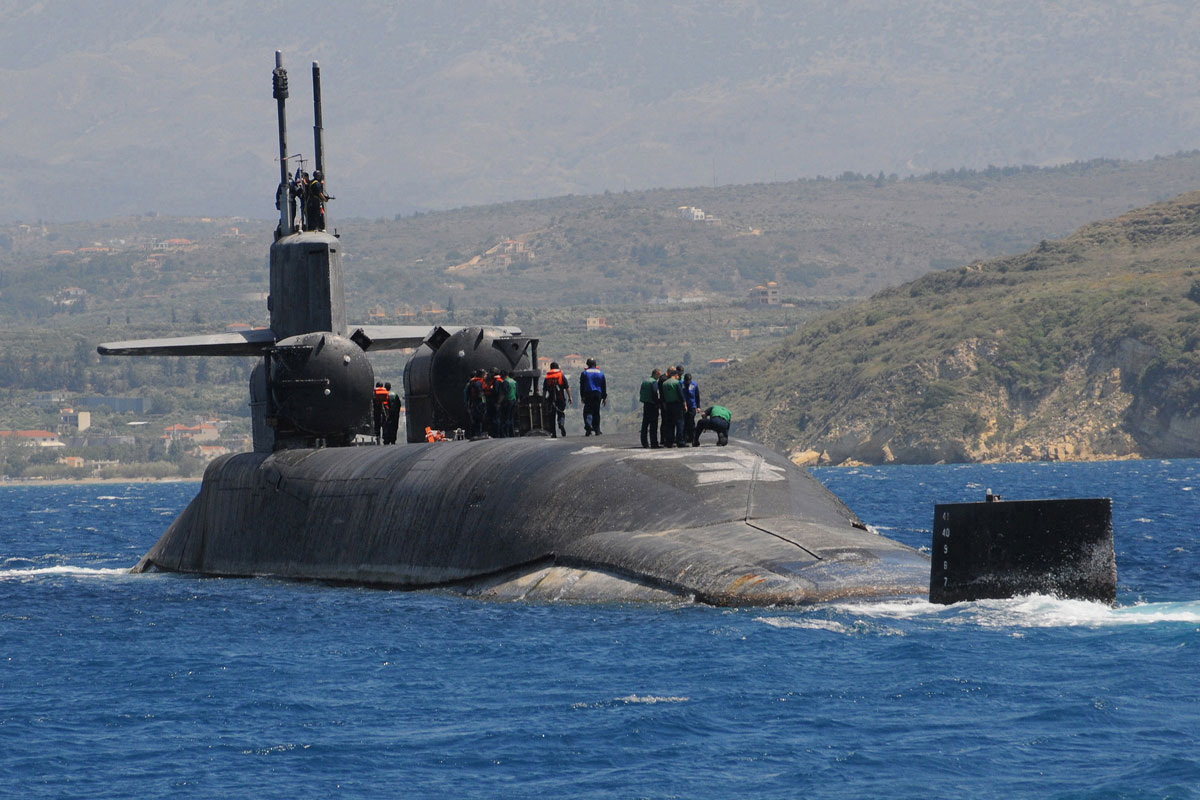

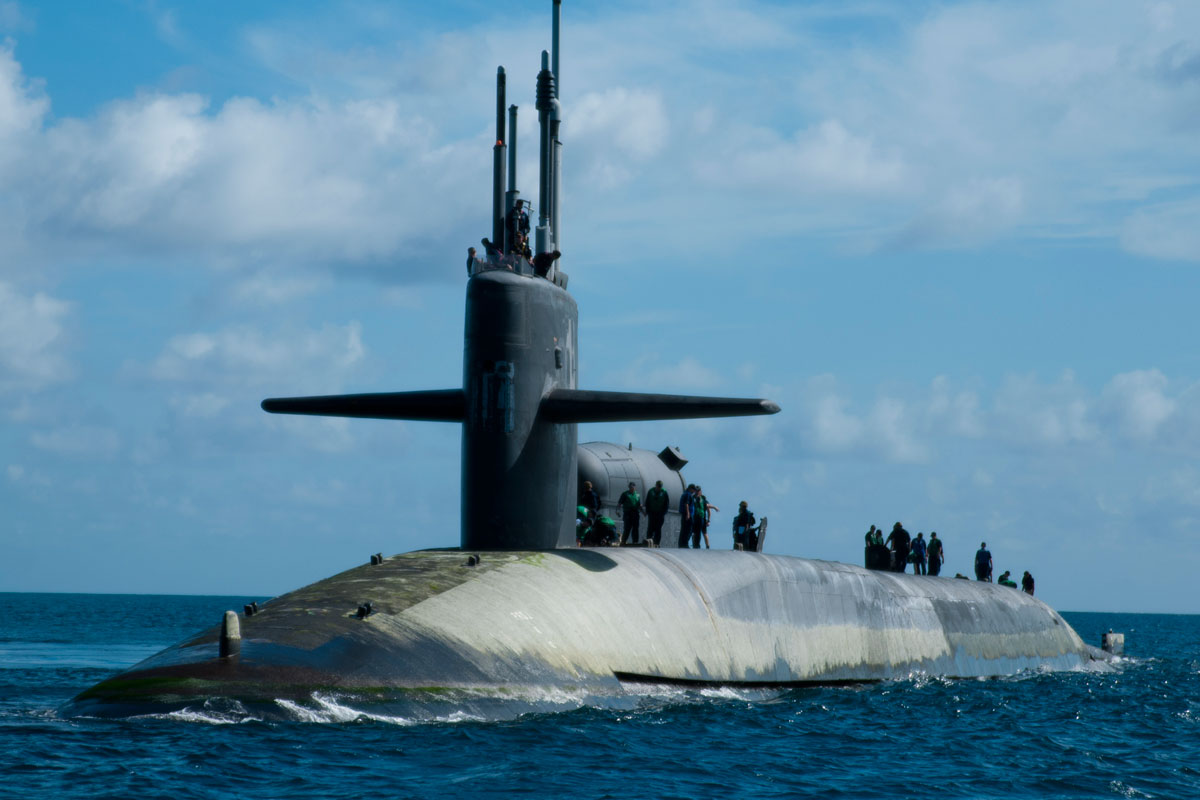

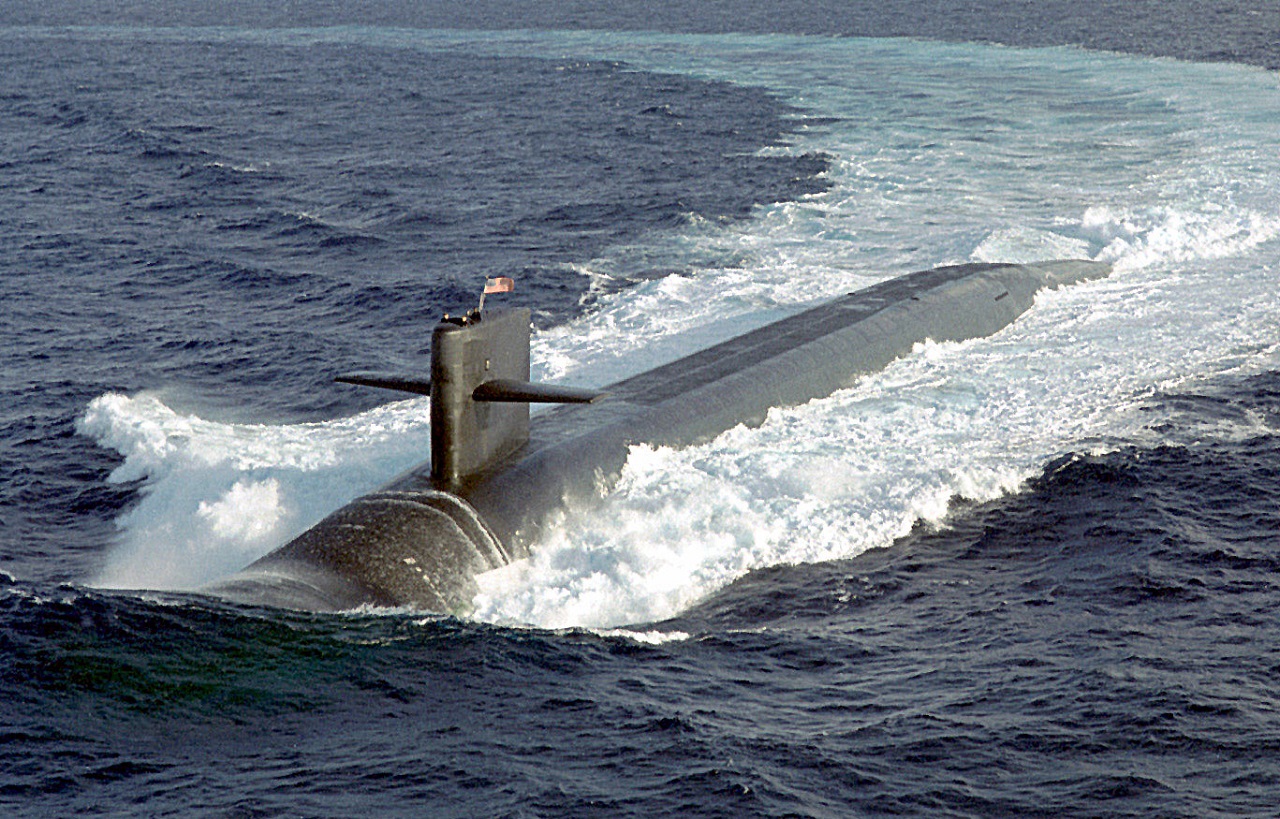

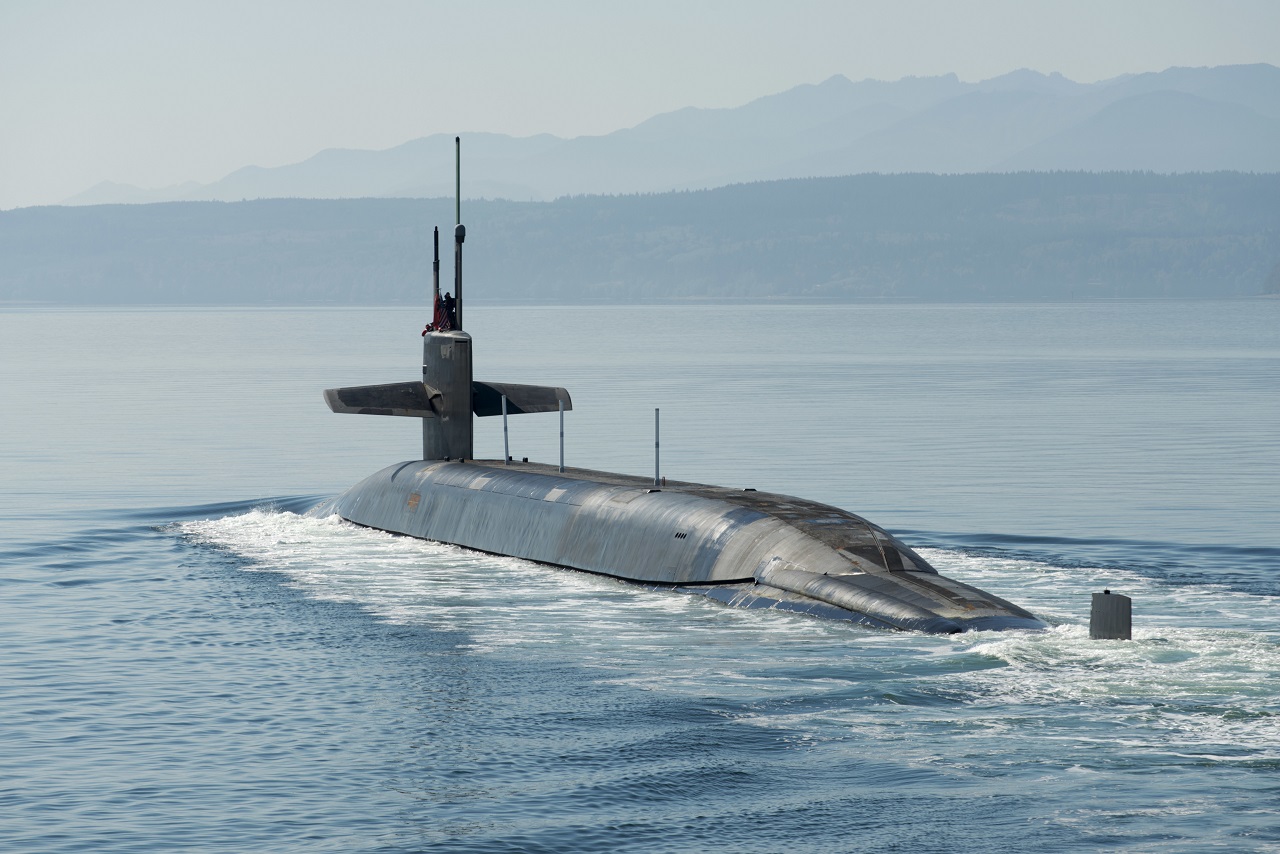

Gallery
