Preceded by:
Brandenburg (1994)Succeeded by:
Baden-Württemberg (2016) | |
| Class | Sachsen |
| Type | Guided Missile Frigate |
| Year | 2003 |
| Crew | 255 |
| Dimensions | |
| Length | 143 m |
| Beam | 17.4 m |
| Draught | 7.4 m |
| Displacement | |
| Empty | 5,600 t |
| Loaded | ? |
| Performance | |
| Speed | 54 km/h |
| Range | 7,408 km @ 33 km/h |
| Machinery | |
| Shafts | 2 |
| Turbines | 1 x Gas turbine 31,500 hp General Electric LM 2500SA-ML 1 x Diesel engine 2,010 hp 0MTU 20V 1163 TB93 |
| Fuel | - |
| Armament | |
| Main | 1 x 76-mm/62 (1 x 1) 76-mm Compact -15° / +85° |
| Anti-Aircraft | |
| Torpedo tubes | 2x3 x (323.7-mm) |
| Launcher | 32 x Mk. 41 VLS |
| AA Weapons | RGM-84 (2 x 4) RIM-66 SM-2 (24) RIM-116 RAM (2 x 21) RIM-162 ESSM (32) |
| Armor | |
| Armor | None |
| Sensors | |
| Radar | SMART-L APAR MSP 500 Triton-G |
| Sonar | DSQS-24B |
| Aircraft | |
| Helicopters | 2 |
| Production | |
| Built | 3 |
| Total | 3 |
| Ship | Code | Builder | Laid | Launch | Comm | Decomm | Fate | ||
 |

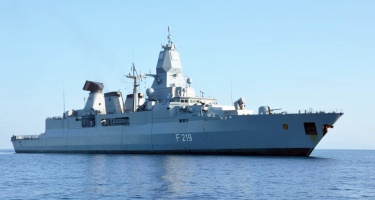

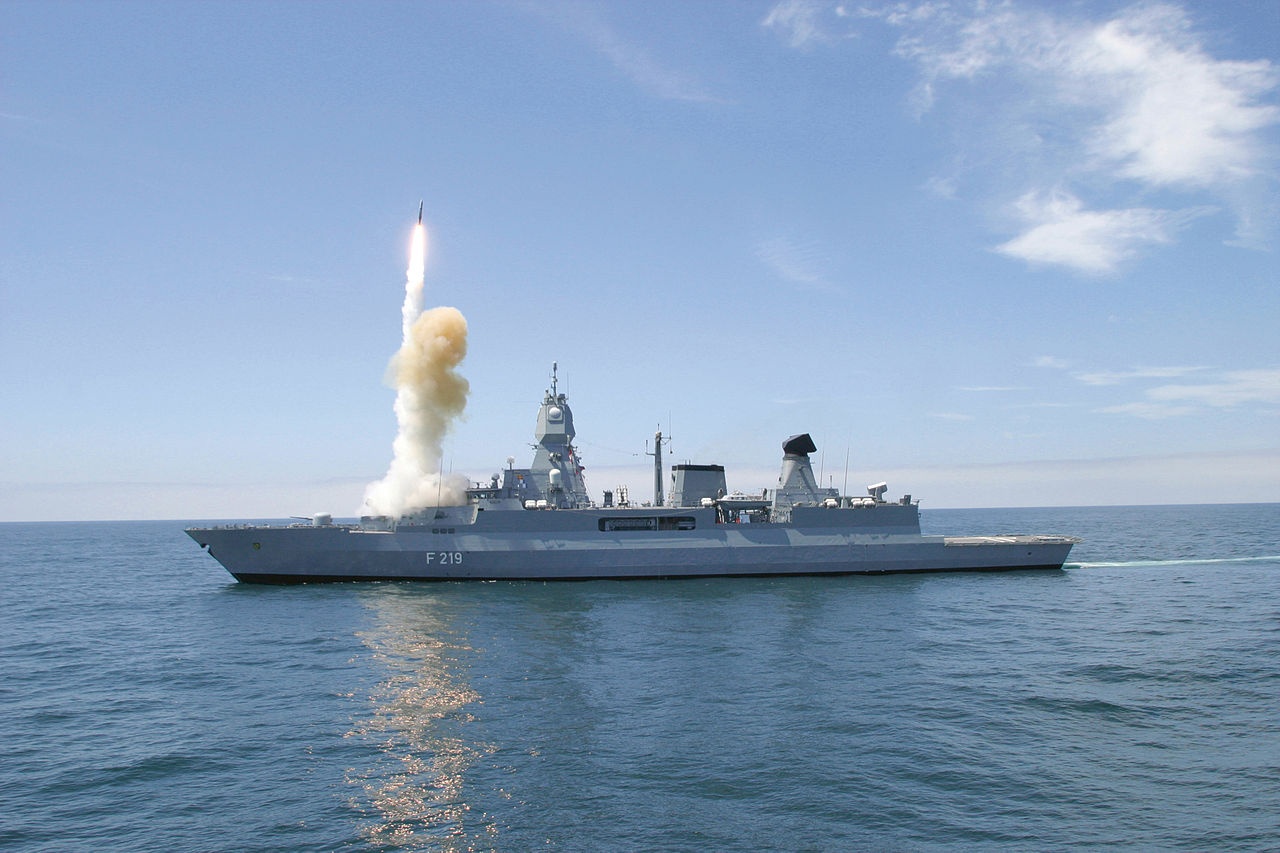

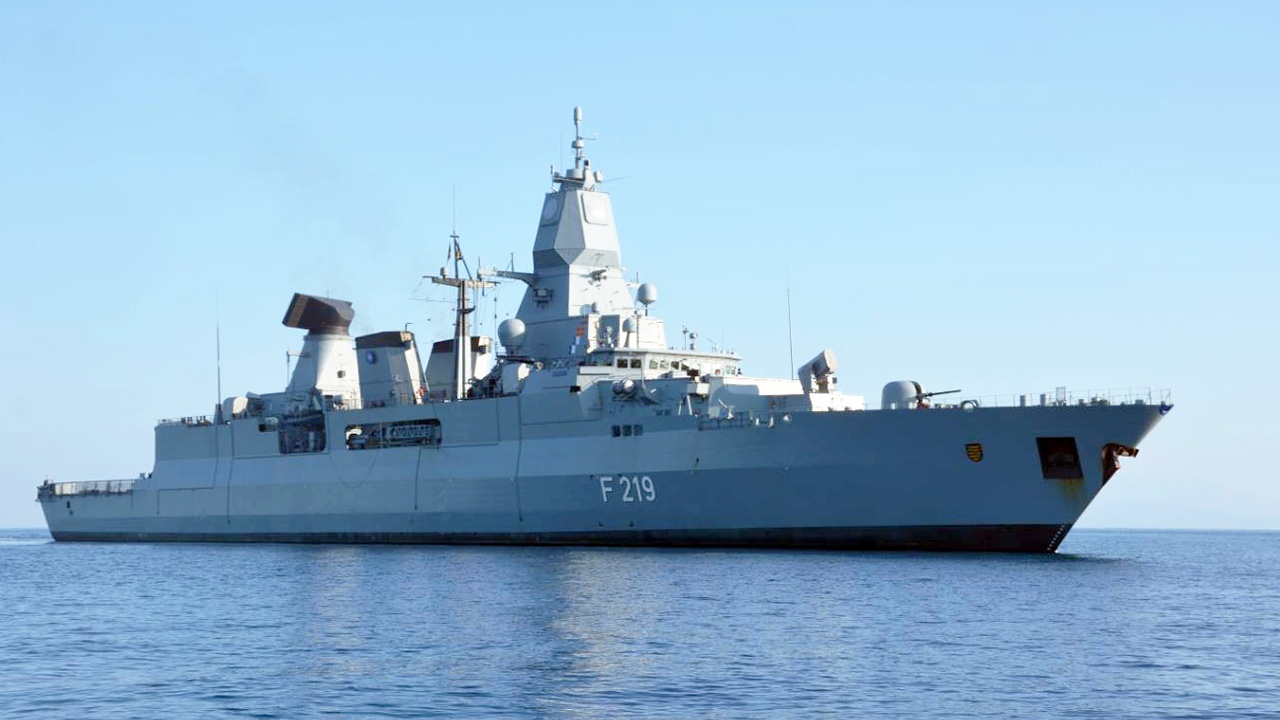

Sachsen | F219 | Blohm & Voss | 01/02/1999 | 20/01/2001 | 04/11/2004 | - | Active | |
|
Hamburg | F220 | HDW | 01/09/2000 | 16/08/2002 | 13/12/2004 | - | Active | |
|

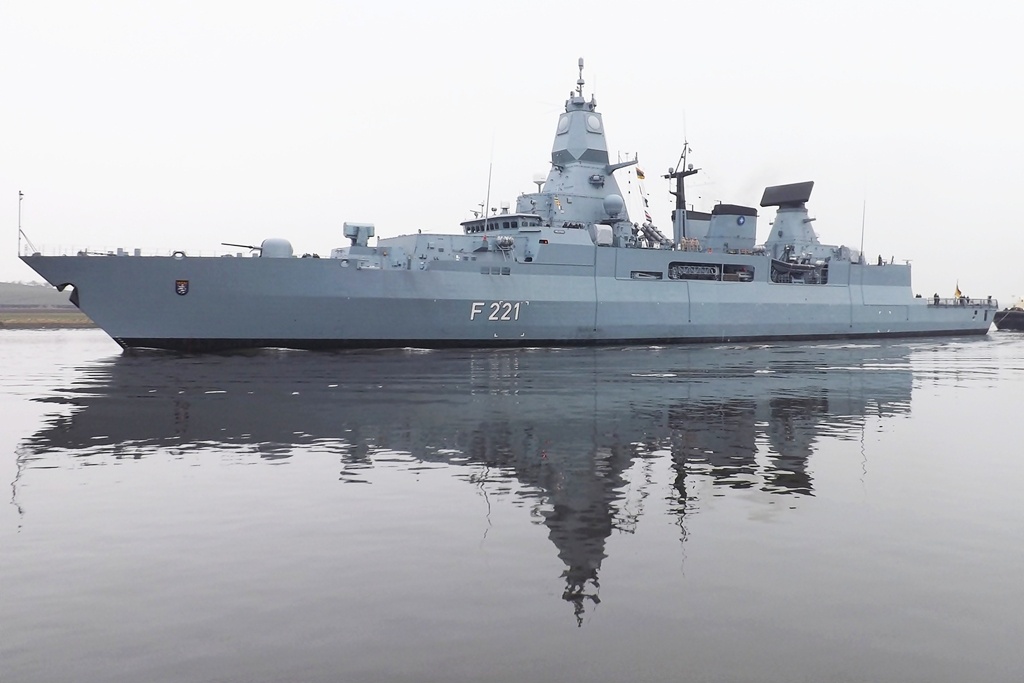

Hessen | F221 | Nordseewerke | 14/09/2001 | 26/07/2003 | 21/04/2006 | - | Active | |
|
Thüringen | F222 | - | - | - | - | Cancelled |
