Preceded by:
Köln (1961)Succeeded by:
Brandenburg (1994) | |
| Class | Bremen |
| Type | Guided Missile Frigate |
| Year | 1982 |
| Crew | 189 |
| Dimensions | |
| Length | 121.8 m (pp) 128 m |
| Beam | 14.6 m |
| Draught | 6 m |
| Displacement | |
| Empty | 3,700 t |
| Loaded | 3,800 t |
| Performance | |
| Speed | 56 km/h |
| Range | 7,408 km @ 33 km/h |
| Machinery | |
| Shafts | 2 |
| Turbines | 2 x Gas turbine 50,000 hp General Electric LM2500 2 x Diesel generator 10,400 hp MTU |
| Fuel | - |
| Armament | |
| Main | 1 x 76-mm/62 (1 x 1) 76-mm Compact -15° / +85° |
| Torpedo tubes | 2x2 x (12.75-in) [Mk. 32] |
| AA Weapons | RIM-7 (1 x 8) RGM-84 (2 x 4) |
| Armor | |
| Armor | None |
| Sensors | |
| Radar | 3RM-20 LW-08 HSA STIR |
| Sonar | SQS-21B(Z) |
| Production | |
| Built | 8 |
| Total | 8 |
| Ship | Code | Builder | Laid | Launch | Comm | Decomm | Fate | ||
 |
Bremen | F207 | Vulcan | 09/07/1979 | 27/09/1979 | 07/05/1982 | 28/03/2014 | Inactive | |
|
Niedersachsen | F208 | AG Weser | 09/11/1980 | 09/06/1980 | 15/10/1982 | 26/06/2015 | Inactive | |
|
Rheinland-Pfalz | F209 | Blohm & Voss | 25/09/1979 | 03/09/1980 | 09/05/1983 | 22/03/2013 | Inactive | |
|

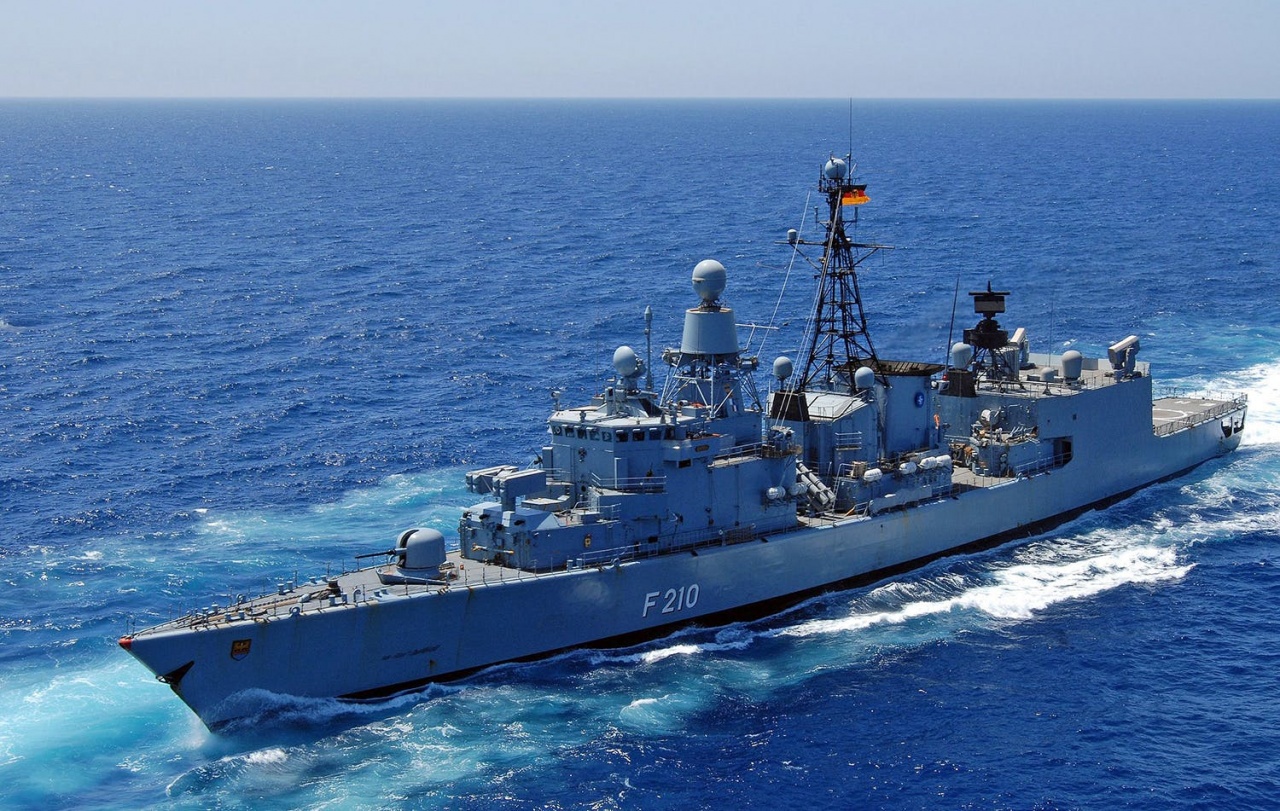

Emden | F210 | Nordseewerke | 23/06/1979 | 17/12/1980 | 07/10/1983 | 29/11/2013 | Inactive | |
|
Köln | F211 | Blohm & Voss | 16/06/1980 | 29/05/1981 | 19/10/1984 | 31/07/2012 | Inactive | |
|
Karlsruhe | F212 | HDW | 10/03/1981 | 08/01/1982 | 19/04/1984 | 16/06/2017 | Inactive | |
|
Augsburg | F213 | Vulcan | 04/04/1987 | 17/09/1987 | 03/10/1989 | 30/06/2019 | Inactive | |
|

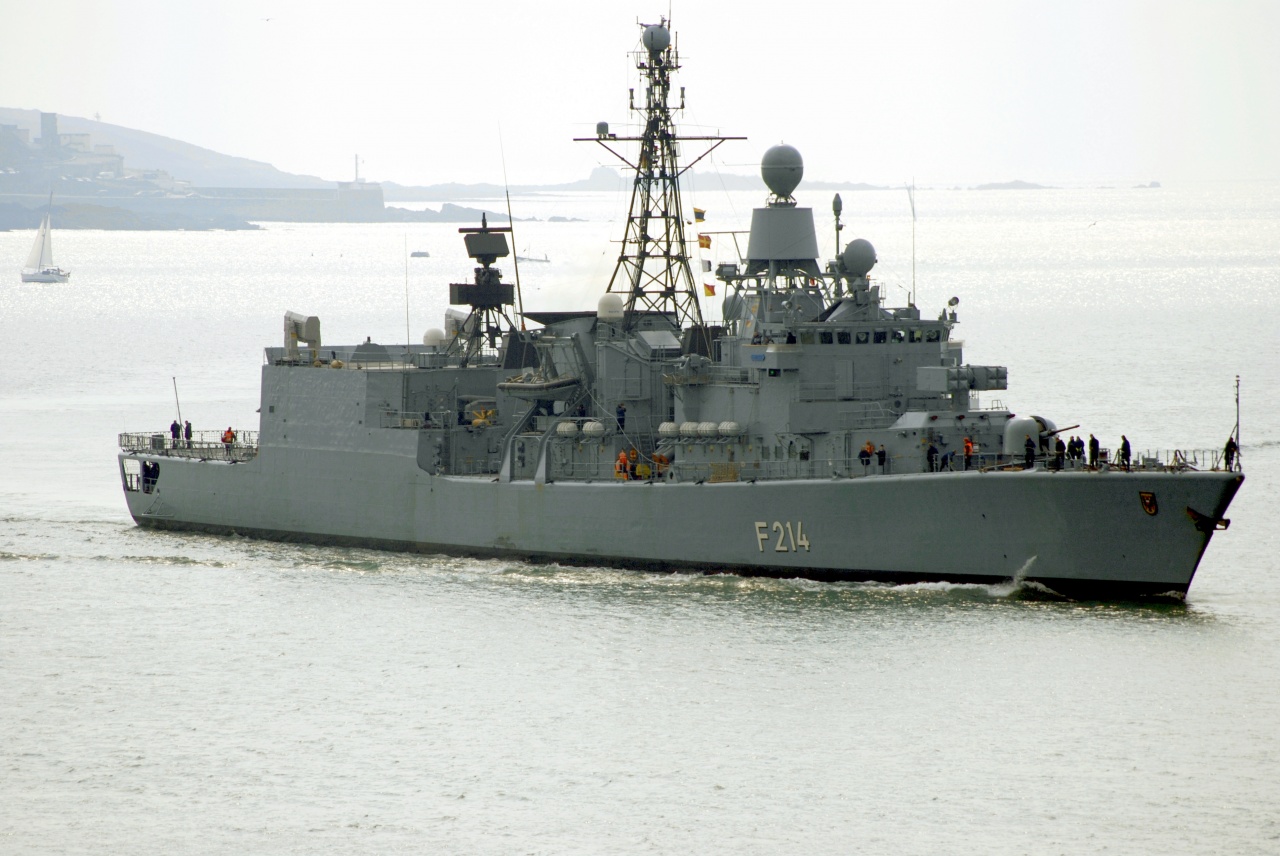

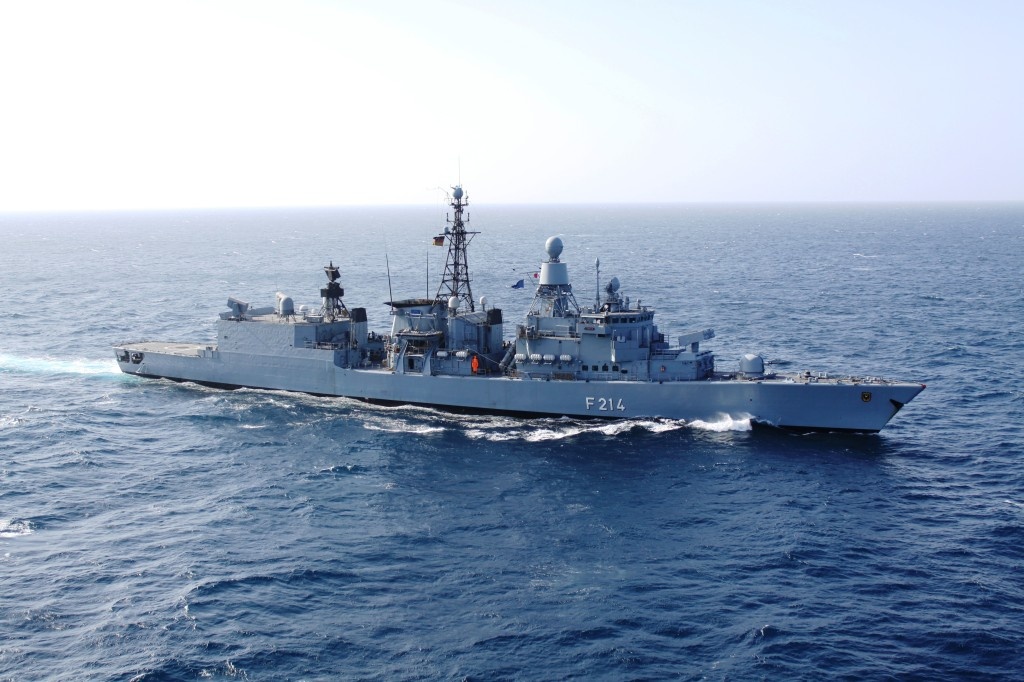

Lübeck | F214 | Nordseewerke | 01/06/1987 | 15/10/1987 | 19/03/1990 | 15/12/2022 | Inactive |
