Tank Destroyer (1943)

Nibelungenwerke

Elefant (Ferdinand)

Elephant (Heer)
Ferdinand

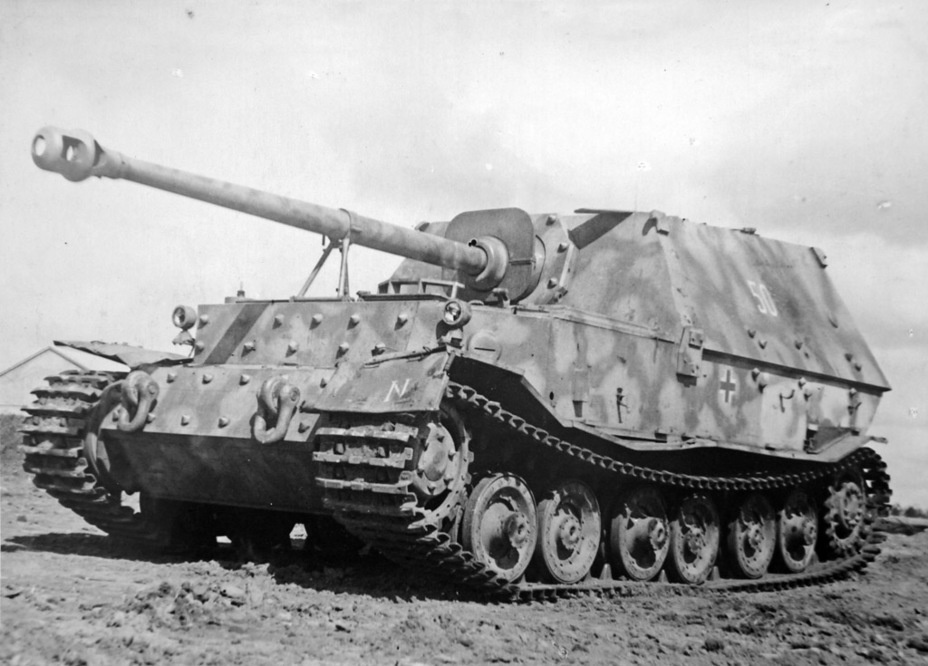

The Elefant (initially known as the Ferdinand), was the second attempt at fitting the powerful 8.8cm PaK 43 on an armored vehicle. The chassis chosen was that of the unused Porsche proposal for the Tiger I, of which nearly 100 were built before the final contract was awarded to Henschel. Changes to the chassis involved moving the engines from the front to the middle of the hull, with the fighting compartment at the rear. This was protected by a large box-like superstructure that that was markedly sloped, particularly at the sides. Aside from that, the hull design was broadly similar to that of the Henschel tiger, including the noticeable step on the front plates. However, the suspension was of three road wheel pairs sprung on torsion bars; these were not interleaved as in the actual Tiger. On account of its powerful armament, the Elephant was capable of easily destroying most Allied tanks, while its maximum armor of 200 mm made it nearly invulnerable to a frontal shot. The Ferdinand, however, was vulnerable to tank-killer infantry teams as it lacked any secondary armament (this was added in the Elephant). This drawback was apparent during the Battle of Kursk where it was introduced. On defensive encounters it was much more successful, and were used throught the war particularly on the Eastern Front and Italy.

The initial Ferdinand (SdKfz 184) was based on the Tiger(P) and was conceived in September 1942 as a vehicle capable of mounting the 8.8cm gun and protected by 200 mm of armor. Production was ordered from February and the first vehicles became available in May and saw their combat debut during the Battle of Kursk. In late 2013 these were retired from the front for upgrades, which involved adding a hull machine gun as well as a commander's cupola. The revised vehicle, of which 48 were completed, was known as the Elefant.

Preceded by:

Nashorn (Hornisse) (1942)

Succeeded by:

Jagdpanther (1944)

Datafile

DesignStuG 8.8cm PaK 43/2
NameElefant
TypeTank Destroyer
Year1943
Crew6
Dimensions
Length (w/Gun)6.80 m (8.14 m)
Width3.380 m
Height2.970 m
Ground Clearance0 m
Track0 m
Track on Ground0 m
Weight
Combat65,000 kg
Ground Pressure1.24 kg/cm²
SuspensionTorsion bar
Performance
Speed (Off-Road)30 km/h (11 km/h)
Range (Off-Road)150 km (90 km)
AmphibiousNo
Fording1.22 m
Vertical Obstacle0.78 m
Trench3.20 m
Gradient22%
Powerplant
Engine2 x 600-hp
Maybach
HL 120 TRM
FuelGasoline
Power/Weight18.46 hp/t
Armament
Main
SecondaryBow:
1 x 7.92-mm
MG 34
Ammo7.92-mm: 600
Armor
TypeSteel/Appliqué
Thickness30 - 200 mm
Max Effective221 - 244 mm RHAe
Hull Upper Front200 mm / 12°
Hull Lower Front200 mm / 35°
Hull Upper Sides80 mm
Hull Lower Sides60 mm
Hull Lower Rear80 mm
Hull Top30 mm
Hull Bottom50 mm
Turret Mantlet125 mm / Round
Turret Front200 mm / 25°
Turret Sides80 mm / 30°
Turret Rear80 mm / 20°
Turret Top30 mm / 86°
Production
Built48
Total90
