Sunderland

Sunderland

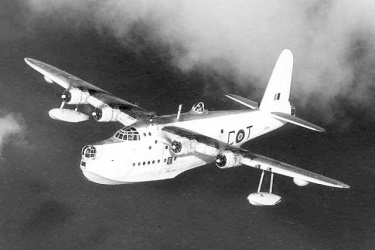

The Short Sunderland was the main British-produced flying boat of World War II whose origins can be traced to the C-class Empire flying boats of the 1930s from which it was shortly developed before the war. The aircraft  was so successful it was produced until October 1945 and was still in use by the RAF as late as 1959 many of which had been converted to airliners. Sunderlands were large and very well defended, its bristling armament gave it the nickname "Flying Porcupine" and it was not an aircraft which most enemy pilots would want to engage alone (or even in groups) . They were used mostly for anti-submarine patrols and long-range reconnaissance but also at air-sea rescue and transport, proving the adaptability of its design. Overall, the Sunderland gave sterling service in all fronts in which the British were involved in and can be considered arguably as the finest Allied flying boat of all, also serving extensively with Australia, Canada and New Zealand.

The prototype Sunderland made its first flight on 16 October 1937 and entered service as the Mk. I. The subsequent Mk. II featured a twin-gun dorsal turret while the Mk. III added various structural modifications as well as the ability to be equipped with ASV radar. Lastly, the Mk. IV was a considerably heavier variant which was renamed the Seaford while the final Mk. V variant was equipped with Pratt & Whitney engines giving it improved reliablity.

Preceded by:

None

Succeeded by:

None

Datafile

DesignSunderland Mk. IIISunderland Mk. V
TypeMaritime PatrolMaritime Patrol
Year19421943
Crew1313
Dimensions
Length26.01 m26.01 m
Height10.007 m10.007 m
Wing Span34.38 m34.38 m
Wing Arean/an/a
Weight
Empty15,649 kg16,783 kg
Maximum26,309 kg29,484 kg
Wing Loading190.4 kg/m²213.4 kg/m²
Performance
Speed343 km/h343 km/h
Ceiling5,304 m5,456 m
Range4,667 km4,329 km
Powerplant
Engine4 x Pegasus XXII
Bristol
794 kW
4 x Twin Wasp R-1830
Pratt & Whitney
895 kW
Thrust/Weight0.250.26
Armament
Guns10 x .303-in
Browning Mk. II
2 x .50-in
10 x .303-in
Browning Mk. II
Payload907 kg907 kg
Production
Built462154
Total721
