Air Weapons

Fighter (1941)

Mikoyan-Gurevich

MiG-3

MiG-3
MiG-3

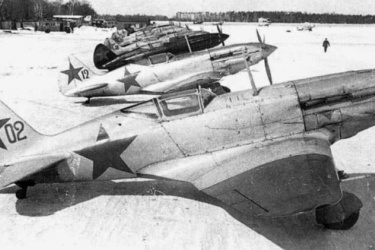

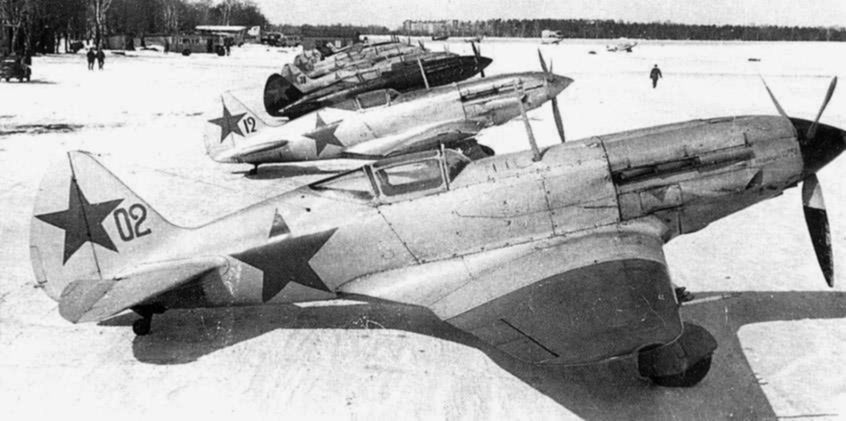

One of the first in a long line of world famous fighter aircraft, the Mikoyan-Gurevich MiG-3 was a direct descendant of the MiG-1 which first flew in early 1940. The MiG-3 entered service shortly after the war began but was plagued by difficult handling, poor armament, and an over-enlarged engine which provided poor pilot visibility. Because of these difficulties, the MiG-3 was hard pressed against German Bf 109s and Fw 190s and was soon withdrawn to secondary duties such as armed reconnaissance and close support in the face of newer and better models like the La-5 and Yak-3. These problems notwithstanding, the MiG-3 featured a top speed which was miles ahead of any other Soviet fighter of its time, filling an important void during the early phases of the campaign and marking the beginning of the family of MiG fighters which were to became synonymous with Soviet air power.

The I-61 prototype first flew on 5 April1940 with an AM-35 inline engine which was then used with the initial production MiG-1 which saw service in limited numbers. The MiG-1 served as the basis of the MiG-3 which featured an uprated engine which was moved slightly forward but not enough give satisfactory visibility. Additional improvements included increased fuel capacity, extra armament and armor, and the ability to carry underwing bombs. Further development led to the MiG-5 and the MiG-7 high-altitude fighter with a pressurized cockpit but neither advanced from the prototype stage.

Preceded by:

None

Succeeded by:

MiG-9 'Fargo' (1946)

Datafile

DesignMiG-1MiG-3
TypeFighterFighter
Year19411941
Crew11

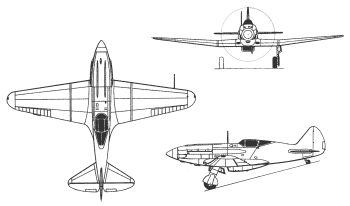

Dimensions
Length8.16 m8.25 m
Height2.640 m2.640 m
Wing Span10.20 m10.20 m
Wing Arean/an/a
Weight
Empty2,602 kg2,699 kg
Loaded3,099 kg3,350 kg
Maximum0 kg0 kg
Wing Loading0 kg/m²0 kg/m²
Performance
Speed628 km/h640 km/h
Speed S/L486 km/h505 km/h
Ceiling12,000 m12,000 m
Range580 km820 km
Powerplant
Engine1 x AM-35A
Mikulin
895 kW / 1,007 (+) kW
1 x AM-35A
Mikulin
895 kW / 1,007 (+) kW
Fuel Load266 kg463 kg
Thrust/Weight0.420.40
Armament
Guns1 x 12.7-mm
UBS (300)
2 x 7.62-mm
ShKAS (1,500)
1 x 12.7-mm
UBS (300)
2 x 7.62-mm
ShKAS (1,500)
Payload-200 kg
Hardpoints-2
AS Weapons-FAB-50/100
RS-82 (6)
Production
Built1003,120
Total3,422
