Fighter (1940)

Lavochkin, Gorbunov & Gudkov

LaGG-3

LaGG-3
LaGG-3

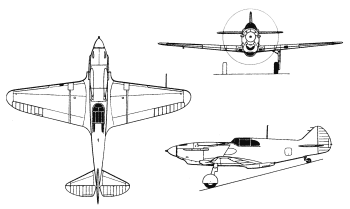

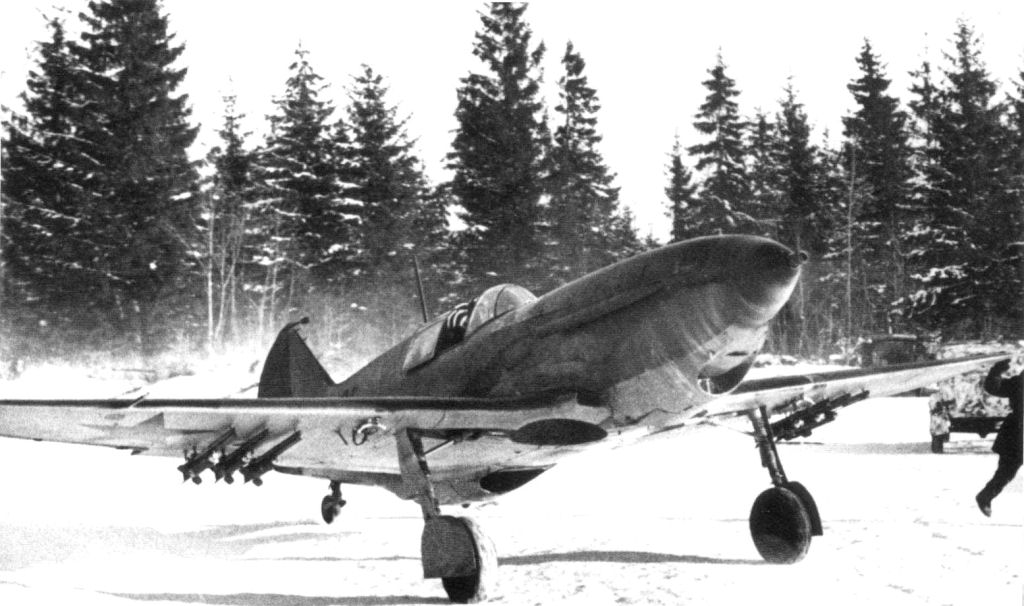

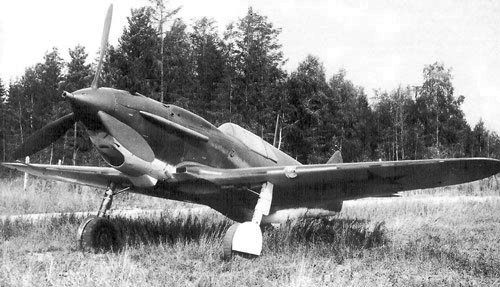

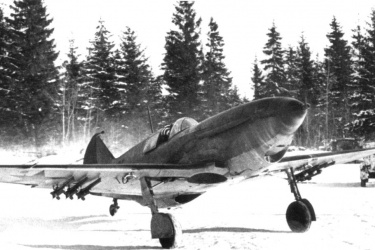

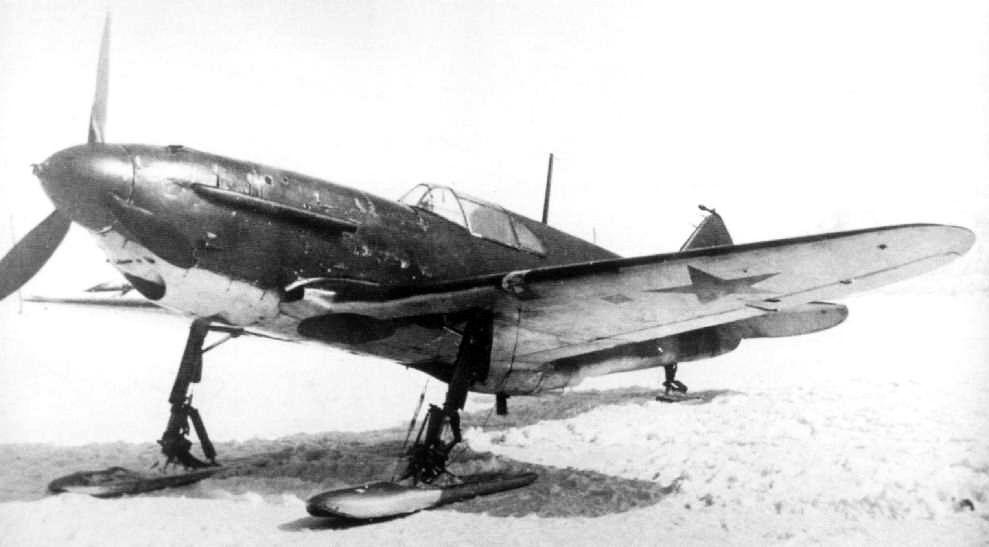

Designed by Semyon Lavochkin with V. Gorbunov and M. Gudkov, the LaGG-3 fighter was one of the three modern types available to the Soviet Union when the war began (the others being the Yak-1 and MiG-3). Behind the all-wood structure which included a plywood skin there lay a robust and rugged fighter whose main virtue was its resistance to battle damage and ease of maintenance and repair even if it was underpowered and not particularly maneuverable. Though inferior to German aircraft like the Bf 109 and Fw 190, LaGG-3s were used extensively during the early years (especially as Il-2 escorts) where they bore the brunt of the initial onslaught until more advanced designs became available such as its successor, the La-5, which switched to radial engines. A number also served against Finland with a few captured examples used against the USSR.

The prototype I-22 was first flown on 30 March 30 1939 and entered production as the LaGG-1. Pilot complaints over poor performance led a new prototype known as the I-301 to enter trials, it flew on 14 June 1940 and was to become the basis of the LaGG-3. This new aircraft was equipped with improved M-105PF engines as well as a retractable tailwheel and featured a variety of armament combinations throughout its existance. No mayor variants of either aircraft were produced although the fitting of M-82 radial enignes on the basic airframe would serve as the basis for the La-5.

Preceded by:

None

Succeeded by:

La-5 (1942)

Datafile

DesignLaGG-3 1 SeriesLaGG-3 4 SeriesLaGG-3 35 SeriesLaGG-3 66 Series
TypeFighterFighterFighterFighter
Year1941194119421943
Crew1111
Dimensions
Length8.81 m8.82 m8.82 m8.82 m
Height2.700 m2.700 m2.700 m2.700 m
Wing Span9.80 m9.80 m9.80 m9.80 m
Wing Arean/an/an/an/a
Weight
Empty2,573 kg2,610 kg2,430 kg2,480 kg
Loaded3,346 kg3,280 kg3,160 kg2,990 kg
Maximum0 kg0 kg0 kg0 kg
Wing Loading0 kg/m²0 kg/m²0 kg/m²0 kg/m²
Performance
Speed575 km/h535 km/h566 km/h591 km/h
Speed S/L498 km/h457 km/h499 km/h542 km/h
Ceiling9,100 m9,300 m10,000 m9,800 m
Range870 km705 km910 km650 km
Powerplant
Engine1 x M-105P
Klimov
783 kW
1 x M-105PA
Klimov
783 kW
1 x M-105PF
Klimov
880 kW
1 x M-105PF
Klimov
880 kW
Thrust/Weight0.370.370.440.43
Armament
Guns1 x 12.7-mm
UBK
2 x 12.7-mm
UBS (200)
2 x 7.62-mm
ShKAS (750)
1 x 20-mm
ShVAK (150)
1 x 12.7-mm
UBS (100)
2 x 7.62-mm
ShKAS (750)
1 x 20-mm
ShVAK (150)
1 x 12.7-mm
UBS (200)
1 x 20-mm
ShVAK (150)
1 x 12.7-mm
UBS (200)
Payload-200 kg200 kg200 kg
Hardpoints-222
AS Weapons-FAS-50/100
RS-82 (6)
FAS-50/100
RS-82 (6)
FAS-50/100
RS-82 (6)
Production
Builtn/an/an/an/a
Total6,528
