Air Weapons

Fighter (1956)

Shenyang

J-5 'Fresco'

J-5 'Fresco'
J-5 'Fresco'

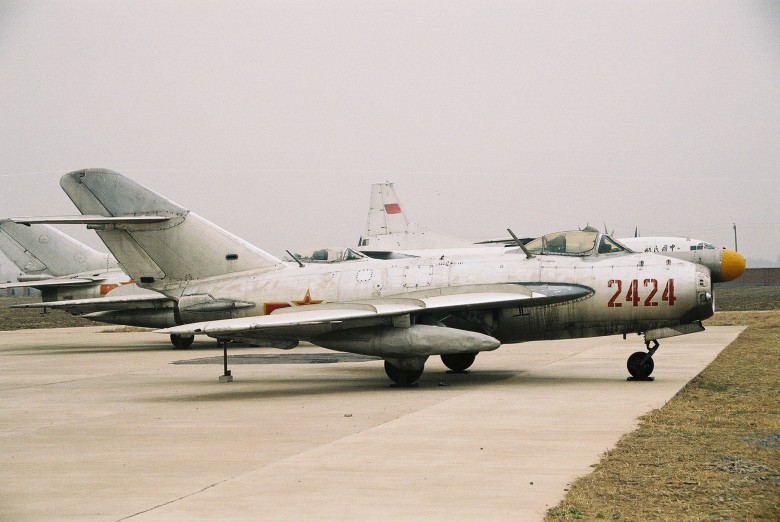

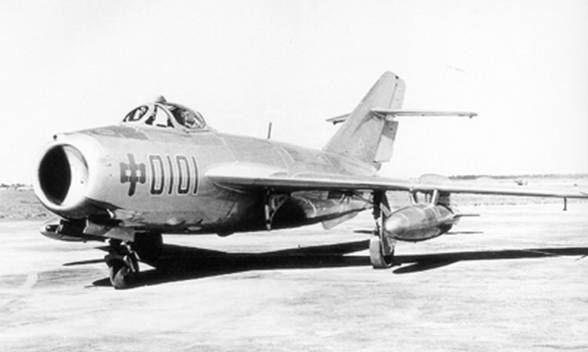

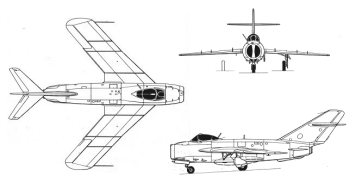

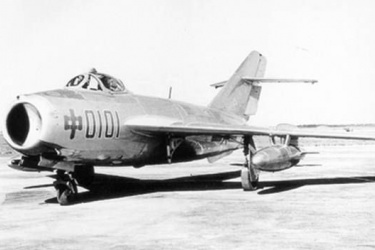

The Shenyang J-5 'Fresco' was China's first attempt at producing a jet fighter, in this case the Soviet MiG-17. The Chinese aircraft industry roughly began during the Korean War where there was some domesic production of MiG-15 parts and thus it was logical that the next step would be full production of a similar aircraft. In the ensuing chaos of the Cultural Revolution, full-scale production was delayed until the mid-1960s by which time the J-5 was practically obsolete and awaiting a replacement. Nevertheless it achieved noteworthy export success with countries such as Albania, Bangladesh, North Korea, Pakistan, Sri Lanka, Sudan, Tanzania, Vietnam and Zimbabwe which valued the J-5's simple design and cheap cost even compared to its Soviet counterparts. Currently out of service with the PLAAF (although a couple of hundred remained operational at the end of the Cold War), trainer versions are still in use.

The J-5 made its first flight on 19 July 1956 and was directly based on the MiG-17F. Later, the J-5A was developed, based in turn around the MiG-17PF and equipped with radar giving it all-weather capability. Ironically, the most widely produced variant was the JJ-5 tandem two-seat trainer built by Chengdu, over 1,000 were built and many are still in service today. Export versions of the J-5 are known as the F-5, with trainers designated FT-5.

Preceded by:

None

Related:

MiG-17 'Fresco' (1952)

Succeeded by:

J-6 'Farmer' (1962)

Datafile

DesignJ-5
Code NameFresco
TypeFighter
Year1956
Crew1
Dimensions
Length11.26 m
Height3.800 m
Wing Span9.63 m
Wing Arean/a
Weight
Empty3,930 kg
Maximum6,075 kg
Wing Loading268.8 kg/m²
Performance
SpeedMach 1.0
Ceiling16,600 m
Range1,470 km
Powerplant
Engine1 x WP-5
Shenyang
3,380 kgf
Thrust/Weight0.78
Armament
Guns1 x 37-mm
Payload500 kg
Hardpoints4
AA WeaponsPL-1
Production
Builtn/a
Total1,800

Gallery
