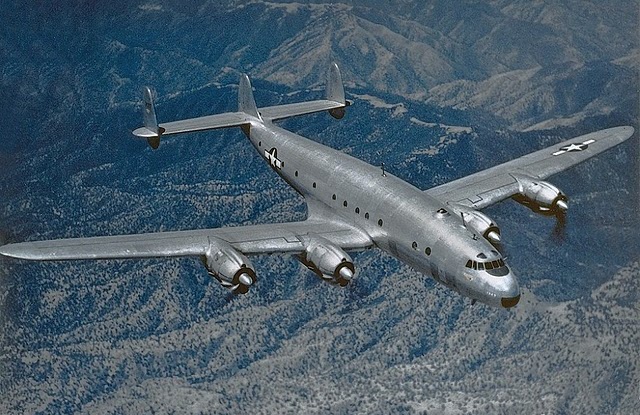

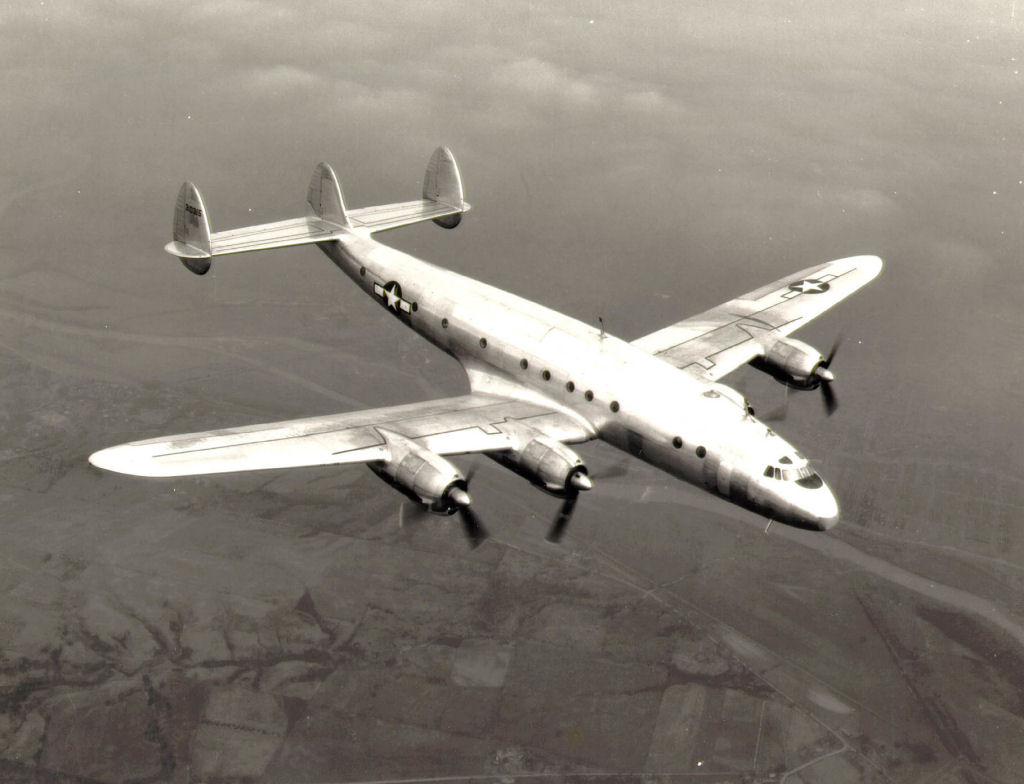

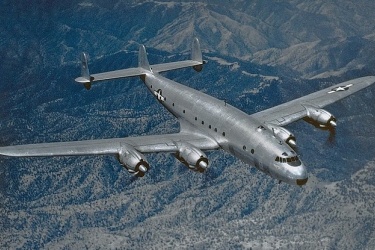

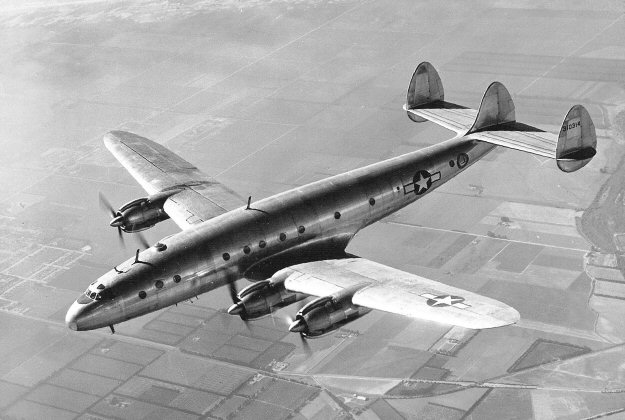

The Lockheed C-69 Constellation was an aircraft of unprecedented size for the standards of its day but was a pronounced failure in military service although it went on to became one of the most iconic airliners of the immediate post-war era. It was originally designed for a TWA requirement before the project was taken over by the USAAF upon the entry of the US to the war. The "Connie" was characterized by a distninctive curved fuselage, triple fins, tricycle undercarriage, and for its cabin pressurization. Unfortunately, engine problems plagued the C-69 and thus, despite its tremendous range and payload capacity, only a trickle of units went on to be used by the USAAF which promply cancelled most additional orders (and which even forbade flights outside the USA). Still, the few C-69s which remained were used during the Berlin Airlift, another was used as President Eisenhower's personal transport, and a prototype would end up becoming the far more successful C-121.
Based on the Lockheed Model 049, the first military C-69 flew on 9 January 1943 with production comprising the basic C-69 as well as a single C-69C VIP transport. The original prototype would end up becoming the XC-69E, which would later become the C-121 Super Constellation.
Preceded by:
C-60 Lodestar (1940)Succeeded by:
None![]() | |
Design | C-69 |
Name | Constellation |
Type | Transport |
Year | 1944 |
Crew | 5 |
Dimensions | |
Length | 29.01 m |
Height | 7.214 m |
Wing Span | 37.49 m |
Wing Area | n/a |
Weight | |
Empty | 22,907 kg |
Maximum | 32,659 kg |
Wing Loading | 220.4 kg/m² |
Performance | |
Speed | 531 km/h |
Ceiling | 7,620 m |
Range | 3,862 km |
Powerplant | |
Engine | 4 x R-3350-35 Pratt & Whitney 1,641 kW |
Thrust/Weight | 0.35 |
Armament | |
Guns | - |
Payload | ? |
Production | |
Built | 21 |
Total | 856 |
