Be-6 'Madge'

Be-6 'Madge'

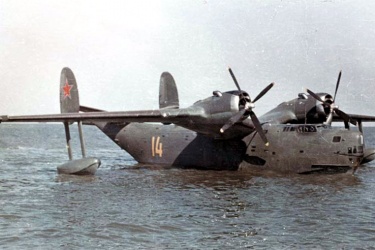

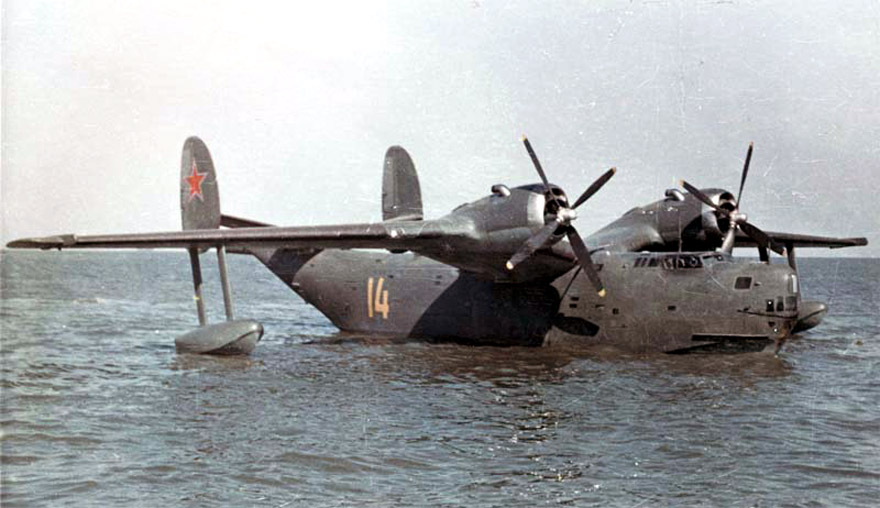

Despite the general lack of Soviet development of naval aviation during World War II, Beriev went on to become arguably the finest producer of military flying boats in the post-war era. Their first major design during this time was the Be-6 'Madge' and whose twin tail and gull wings gave it a strong resemblance to the PBM Mariner. Among the features of the Be-6 were a retractable radar scanner radome aft of the hull, remote controlled turrets, and the capability of carrying diverse armament including mines, depth charges, and torpedoes. The Be-6 soon became the most widely used flying boat of the Naval Air Fleet where it performedmaritime patrol, reconnaissance, and anti-submarine duties (aided by the addition of a magnetic anomaly detector in many aircraft). With the introduction of more capable land-based patrol aircraft, the Be-6 was retired during the 1960s but continued flying for search and rescue (SAR), fishery patrol, and transport duties.

The LL-143 prototype flew for the first time sometime in 1947 entering production as the Be-6. No other variants were built and it was replaced by the similar Be-12 after the design of a jet-powered successor, the Be-10, proved inferior in service.

Preceded by:

None

Succeeded by:

None

Datafile

DesignBe-6
Code NameMadge
TypeMaritime Patrol
Year1949
Crew8
Dimensions
Length23.70 m
Height7.650 m
Wing Span33 m
Wing Arean/a
Weight
Empty18,827 kg
Maximum23,400 kg
Wing Loading195 kg/m²
Performance
Speed415 km/h
Ceiling6,100 m
Range4,900 km
Powerplant
Engine2 x ASh-73TK
Shvetsov
1,715 kW
Thrust/Weight0.22
Armament
Guns5 x 23-mm
Payload2,000 kg
Production
Builtn/a
Total?
