An-22 Antei 'Cock'

An-22 Antei 'Cock'
An-22 Antei 'Cock'

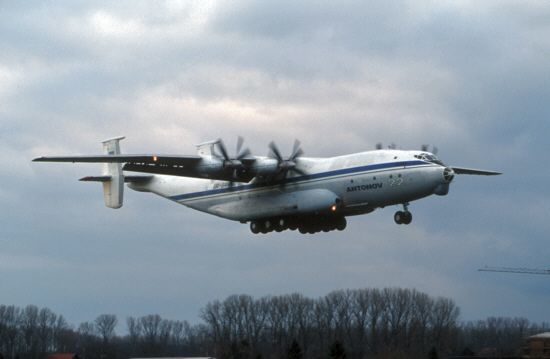

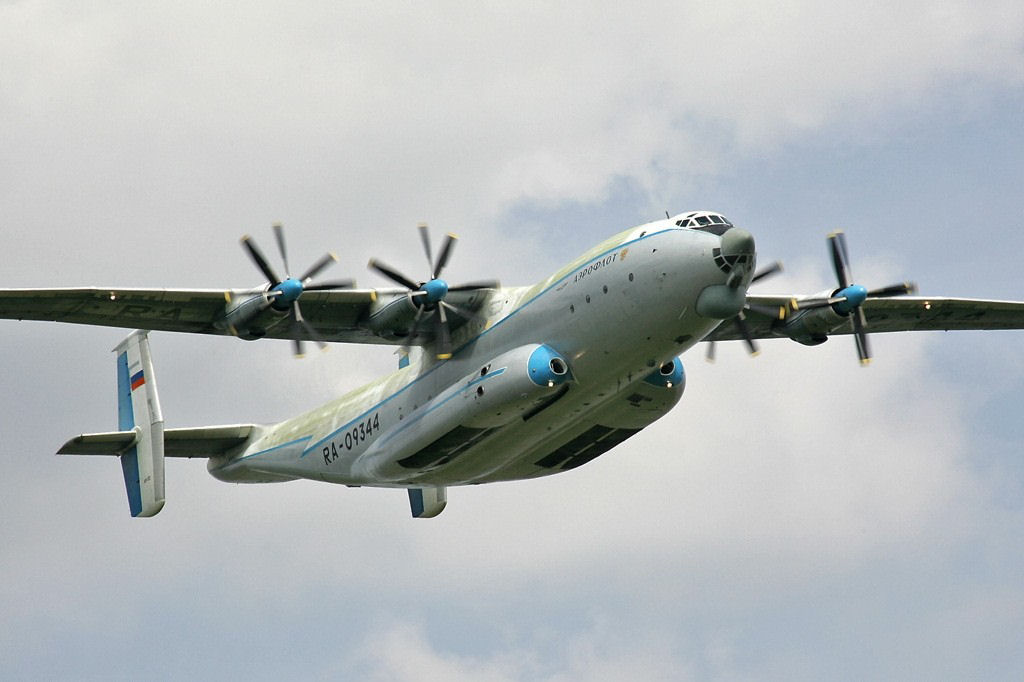

Until the introduction of the C-5, the Antonov An-22 Antei (Antheus) held the title of the world's largest aircraft although its status as the largest turboprop airplane has yet to be challanged. This four-engined monster has a similar configuration as the An-12 but with a tail unit with twin endplates which actually extend above and below the tailplane. The An-22 has a massively high wing loading (148.8 lbs/sq ft) which gives it an appearance of instability due to its small wings but an otherwise well-though out airframe design provides excellent take-off and climb performance which earned it various world records during its time. One of the most noticeable features of the An-22 is the massive turboprop engines, each with a pair of contra-rotating propellers. Also, the cargo hold is unpressurized and has a large ramp aft of the fuselage for loading, unloading and paradropping of material: it was not uncommon to see large numbers of these aircraft being used for paratroop exercises during the Cold War. Serving with both V-TA and Aeroflot, the An-22 has been partially replaced by the much larger and more modern An-124 although some remain in use with various airlines.

The massive An-22 was flown for the first time on 27 February 1965 and was given the NATO code name 'Cock'. It was first shown in the West during the 1965 Paris Air Show in prototype form with a glazed cockpit and lacking the prominent nose radars. No other major variants were built.

Preceded by:

An-12 'Cub' (1959)

Succeeded by:

Il-76/78 'Candid' (1974)
An-124 Ruslan 'Condor' (1986)

Datafile

DesignAn-22
NameAntei
Code NameCock
TypeTransport
Year1967
Crew5-6
Dimensions
Length57.90 m
Height12.530 m
Wing Span64.40 m
Wing Arean/a
Weight
Empty100,000 kg
Maximum100,000 kg
Wing Loading289.9 kg/m²
Performance
Speed740 km/h
Ceiling10,000 m
Range5,000-10,950 km
Powerplant
Engine4 x NK-12MA
Kuznetsov
11,186 kW
Thrust/Weight0.55
Armament
Guns-
Payload80,000 kg
Production
Built100
Total100
