Multi-Role Fighter (1989)

AMX International

AMX

AMX
AMX

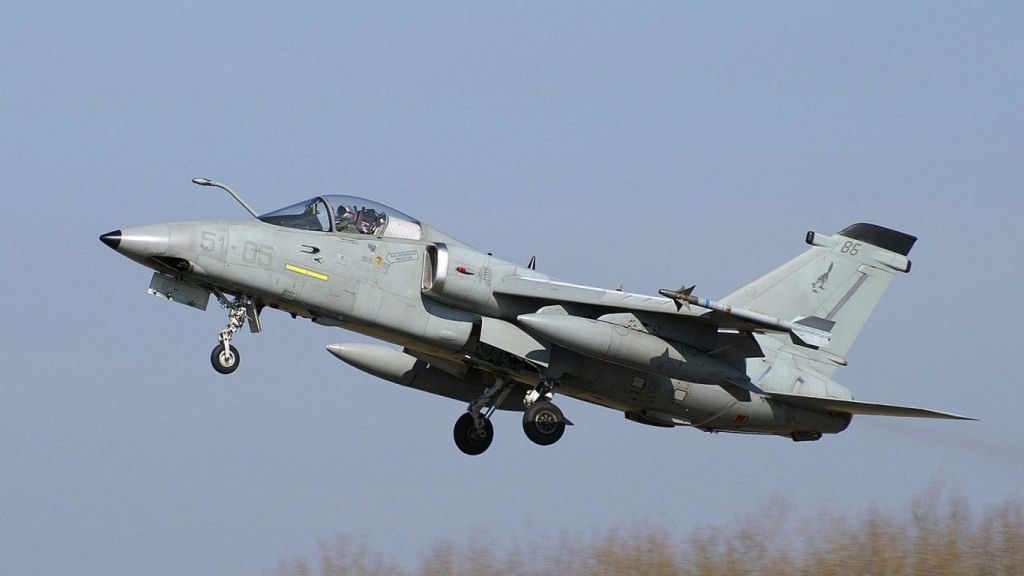

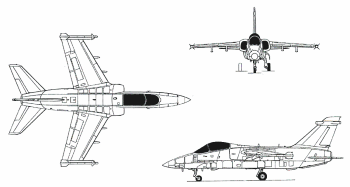

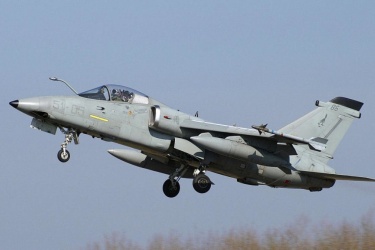

Designed in collaboration between Aeritalia and Aermacchi from Italy and EMBRAER from Brazil, the AMX is a small multi-role fighter-bomber which was intended to replace the ageing G.91s and F-104Gs in the Aeronautica Militare Italiana and the AT-26 Xavantes in the Força Aérea Brasileira. The AMX is a compact shoulder-wing monoplane with swept wings with wingtip rails for Sidewinder or other similar short-range AAMs. It's small size is coupled with a low IR signature and reduced radar cross-section making it a difficult aircraft to spot and it may also operate in rough or damaged airstrips in both day and night operations. Italian units saw action during NATO operations over Kosovo where they flew over 250 missions without sufferening any losses. Furthermore, Venezuela is expected to purchase an advanced variant thus compensating for otherwise poor export success despite its capabilites.

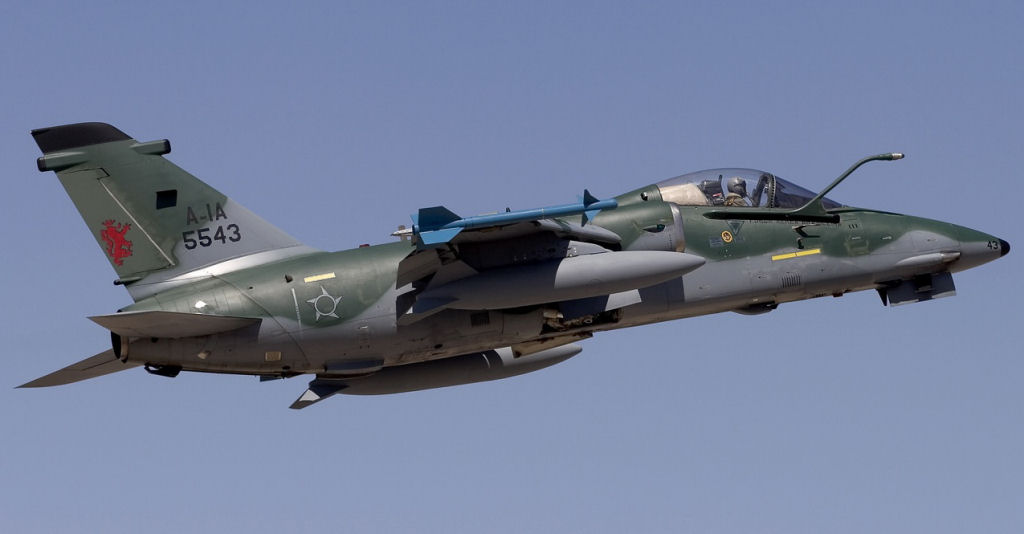

The first of seven AMX prototypes flew on 15 May 1984 and entered service in Italy in April 1989 and in October of that same year in Brazil. In Brazilian service, the AMX is known as the A-1 and has twin 30-mm DEFA cannon installed. A combat-capable two-seat operation trainer is known as the AMX-T while an improved design featuring a digital cockpit and radar is known as the AMX-ATA (Advanced Trainer Attack).

Preceded by:

None

Succeeded by:

None

Datafile

DesignA-11AA-1M
TypeLight AttackLight Attack
Year19892013
Crew11
Dimensions
Length13.23 m13.23 m
Height4.550 m4.550 m
Wing Span8.87 m8.87 m
Wing Arean/an/a
Weight
Empty6,700 kg6,700 kg
Loaded10,750 kg10,750 kg
Maximum13,000 kg13,000 kg
Wing Loading619.0 kg/m²619.0 kg/m²
Performance
Speed1,053 km/h1,053 km/h
Ceiling13,000 m13,000 m
Range3,334 km3,334 km
Powerplant
Engine1 x Spey Mk. 807
Rolls-Royce
5,000 kgf
1 x Spey Mk. 807
Rolls-Royce
5,000 kgf
Fuel Load2,700 kg2,700 kg
Thrust/Weight0.680.68
Sensors
Radar-SCP-01
HMD-DASH IV
Armament
Guns1 x 20-mm
M61A1
1 x 30-mm
DEFA 554
Payload3,800 kg3,800 kg
Hardpoints77
AA WeaponsAIM-9
GBU-12/16
M117
MAA-1
Mk. 82/84
MAA-1
AS WeaponsGBU-12
Mk. 82/83
GBU-12
MAR-1
Mk. 82/83

Production
Built11045
Total210
